ENC-M15I-2000-4-250-OC-18CBL-E
| Cycles Per Rev (CPR) | 2000 |
|---|---|
| Commutation | 4 Pole |
| Bore Size | 0.250 in |
| Index Channel | Yes |
| Cover | Cover Extension |
| Electrical | Open Collector |
Interested in large quantity discount?
Product Information

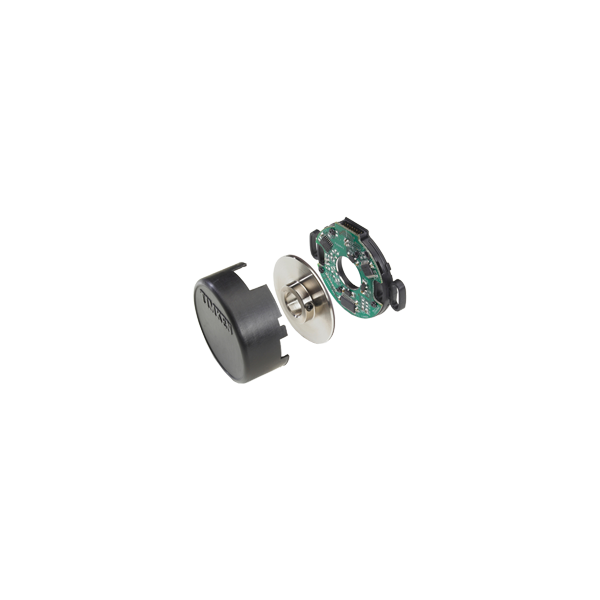

The M15 Modular Differential Encoders, with or without Index, offers reliable performance at an economical price. This modular unit comes in a large range of resolutions with multiple pole commutations and reference pulse options. This magnetic encoder can handle shaft sizes that range from .125" to .500". The patented EMI circuitry provides protection from high-frequency electrical noise and background magnetic fields. This low-profile design is perfect for stepper motor positioning and anti-stall feedback, DC brush-type motor positioning, brushless DC, and servo motor control using the commutation options. The M15 comes enclosed in a rugged IP40 package for protection from debris.
*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page.
- Tracks 0 to 200,000 Cycles Per Second
- Third Channel Index
- Operating Temperature of -40° to +125° C
- 100 to 2,048 Cycles Per Revolution (CPR)
- Powered From Single +5VDC Power Supply
- Allows for ±.010" Axial Shaft Play
- 2-Channel Quadrature (Differential Squarewave Output)
- NEMA 23 to 42 Compatible
- RoHS Compliant
.png)
.png)
.png)
