ENC-MS40-08-180-AI1-6-2-A-S-M05
| Output Range | 180° |
|---|---|
| Output | 4-20 mA |
| Power Supply Voltage (VDC) | +15 to +30V |
| Connection Position | Axial |
| Shaft Diameter (mm) | 6 |
| Cable Length | 0.5 |
Interested in large quantity discount?
Product Information

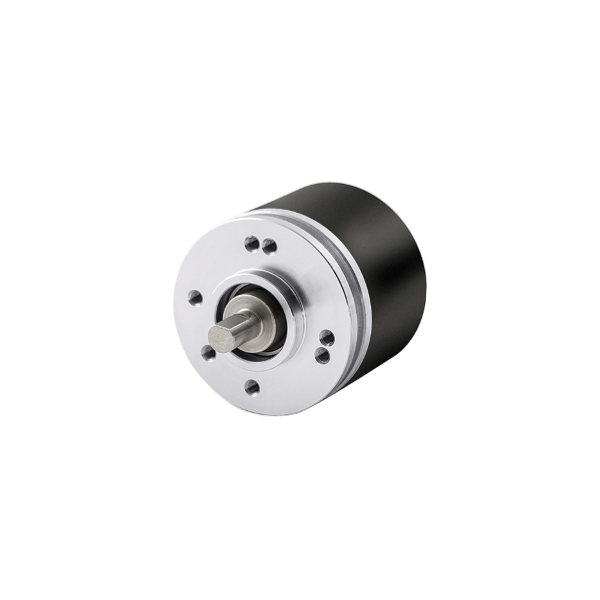

The MS40 with Analog is a Magnetic Absolute Encoder used for standard applications with 8-Bit Clockwise Resolutions. This Encoder has a shaft diameter of 6mm. Also, it has an Output Range of 180° or 360°. The standard protection is an IP65 Rating with the option of an IP66 Rating on the shaft side. When using the AV1 Output the required Power Supply provides +10VDC to +30VDC. However, when using the AV2 or AI1 Output the Power Supply provides +15VDC to +30VDC. The MS40 with Analog has two Connection Position options to choose from, Radial and Axial. The Axial exit is in line with the shaft and the Radial connector exit is perpendicular to the shaft.
- Magnetic Absolute Encoder
- Analog 0-5V, 0-10V, and 4-20mA
- 8-Bit Clockwise Resolution
- Compact and Robust Absolute Encoder
- IP65 Rating, IP66 on Request
- Output of 180° or 360°
.png)
.png)
.png)
Spec Sheet (PDF)
