KNC-HMI-MK043E-20DT

Unit Price:
$229.00
Quantity Discount
  • Buy 10 for $209.70 each and save 8%
  • Buy 25 for $195.76 each and save 15%
  • Buy 50 for $172.27 each and save 25%
  • Buy 100 for $167.13 each and save 27%
Inventory:
74
In stock
More Information
Rated Voltage 24VDC
Discrete Inputs 9
Discrete Outputs 9
Analog Inputs (0-10V) 2
Analog Inputs (TC) -
Analog Outputs -
Expanded I/O Up To 8
Display Size 4.3"
Resolution 480x272pixels
Memory 128MB FLASH,64MB DDR2
Interested in large quantity discount?

Product Information

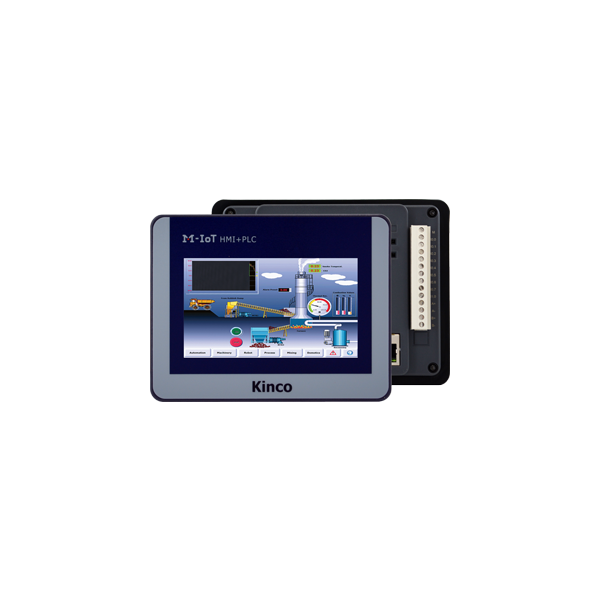

The KNC-HMI-MK043E-20DT and KNC-HMI-MK043E-20DTC (KNC-HMI-MK043E-20DTC will be available in Summer of 2022) are HMI's with integrated PLC's that provide a reliable system to help your application run smoothly and efficiently. This HMI/PLC combination features a 256K color display mode that enhances your touch screen with rich color and incomparable resolution. The IP65-rated front screen is protected against dust ingress and may be subjected to low-pressure water jets. On the backside, the PLC is directly attached and integrated into the same package with the HMI. The PLC provides special I/O functions, a USB2.0 (USB-B Connector) programming port, four high-speed counters, four high-speed outputs, two RS485 communication/serial port(s), model dependent, integrated digital input, output channels, Ethernet and more. Built-in Internet of Things functions, support program upload and download, pass through PLC communication through network, VNC remote monitoring, equipment management and other rich remote operation and maintenance functions, easy to use and powerful, to facilitate the application needs of customers in various applications. Also, built-in high-speed pulse outputs can reach a maximum frequency of 50 KHz. KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions for programming the PLC functions, while Dtools software is a convenient and powerful configuration software that allows the user to create first-class, efficient programs for the HMI. KincoBuilder and Dtools Software are both required to operate this integrated device, and are available for free on our website. With a quick and easy set-up, the KNC-HMI-MK043E-20DT series is an intelligent choice for users who need the functionality of an HMI and PLC in one powerful, streamlined package.

  • 256K Colors
  • Lifetime up to 50,000 Hours
  • 480x272 Pixels
  • 4.3" Display Screen
  • HMI and PLC are attached
  • IP65 Protection Level on Front Panel
  • 24 VDC Input Voltage
  • Backlight LED
  • 128MB Flash and 64MB DDR2 Memory
  • Communication Ports: USB2.0, RS485, Ethernet

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

Software Download
