KNC-HMI-MK043E-20DTC

1pc Price:
$187.00
Quantity Discount
  • Buy 10 for $181.34 each and save 3%
  • Buy 25 for $176.08 each and save 6%
  • Buy 50 for $158.90 each and save 15%
  • Buy 100 for $156.00 each and save 17%
Inventory:
6
More Information
Rated Voltage 24VDC
Discrete Inputs 9
Discrete Outputs 9
Analog Inputs (0-10V) -
Analog Inputs (TC) 2
Analog Outputs -
Expanded I/O Up To 8
Display Size 4.3"
Resolution 480x272pixels
Memory 128MB FLASH,64MB DDR2
Interested in large quantity discount?

Product Information

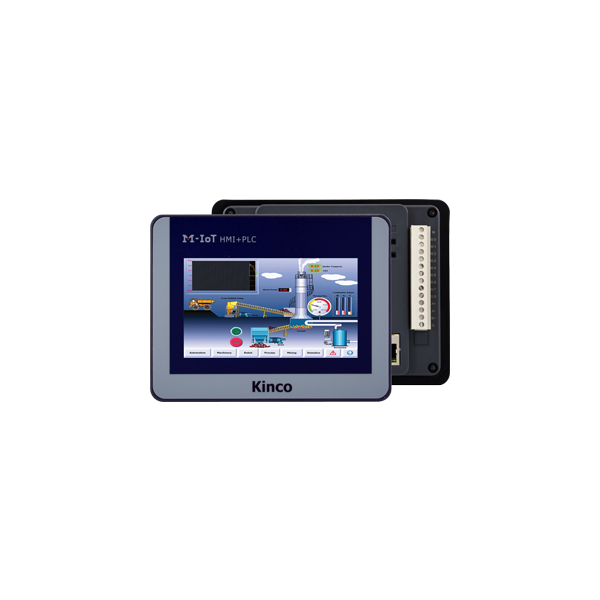

The KNC-HMI-MK043E-20DT and KNC-HMI-MK043E-20DTC are HMIs with integrated PLCs that provide a reliable system to help your application run smoothly and efficiently. This HMI/PLC combination features a 256K color display mode that enhances your touch screen with rich color and incomparable resolution. The IP65-rated front screen is protected against dust ingress and may be subjected to low-pressure water jets. On the backside, the PLC is directly integrated into the same package with the HMI. The PLC provides special I/O functions, a USB2.0 (USB-B Connector) programming port, four high-speed counters, four high-speed outputs, two RS485 communication/serial ports (model dependent), integrated digital input, output channels, Ethernet and more. Featuring: built-in Internet of Things functions, support program upload and download, pass through PLC communication through network, VNC remote monitoring, equipment management, and other rich remote operation and maintenance functions. The KNC-HMI-MK043E-20DT(C) is easy to use, powerful, and facilitates the needs of customers in various applications. Built-in high-speed pulse outputs can reach a maximum frequency of 50 KHz. KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions for programming the PLC functions, while Dtools software is a convenient and powerful configuration software that allows the user to create first-class, efficient programs for the HMI. KincoBuilder and Dtools software are both required to operate this integrated device. With a quick and easy set-up, the KNC-HMI-MK043E-20DT series is an intelligent choice for users who need the functionality of an HMI and PLC in one powerful, streamlined package.

  • 256K Colors
  • Lifetime up to 50,000 Hours
  • 480x272 Pixels
  • 4.3" Display Screen
  • HMI and PLC are attached
  • IP65 Protection Level on Front Panel
  • 24 VDC Input Voltage
  • Backlight LED
  • 128MB Flash and 64MB DDR2 Memory
  • Communication Ports: USB2.0, RS485, Ethernet
