KNC-IWMC10409-02222-A165-MADT

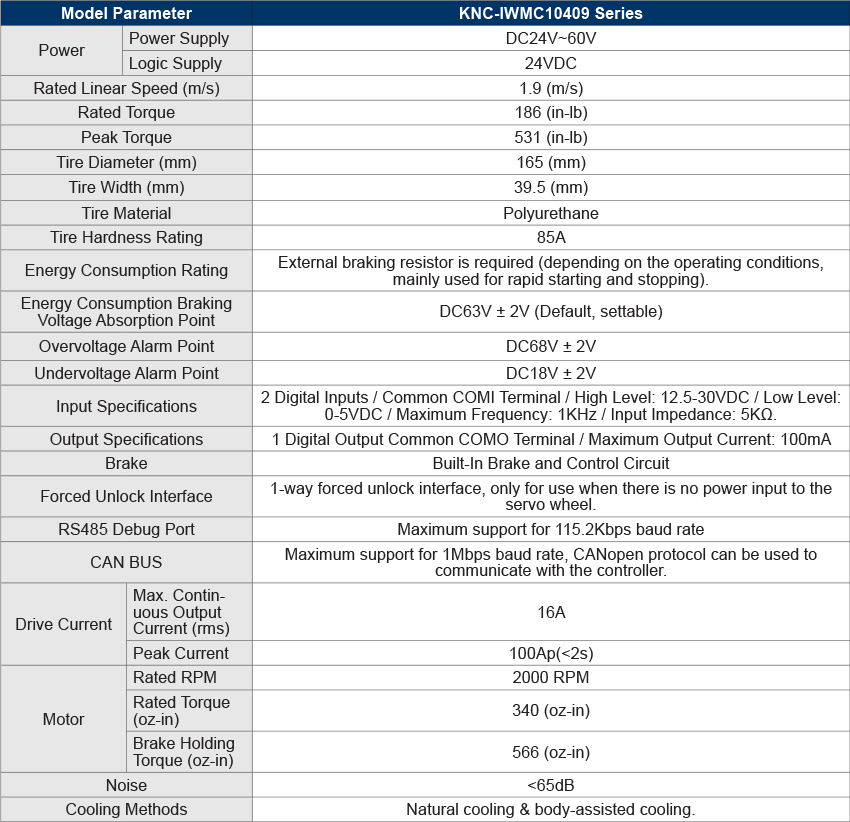

| Wheel Diameter (mm) | 165 |
|---|---|
| Wheel Width (mm) | 39 |
| Overall Length (mm) | 57.5 |
| Input Voltage Range (VDC) | 24-60 |
| Rated Linear Speed (m/s) | 1.9 |
| Rated Torque (Nm) | 22 |
| Rated Current (Arms) | 16 |
Interested in large quantity discount?
Product Information

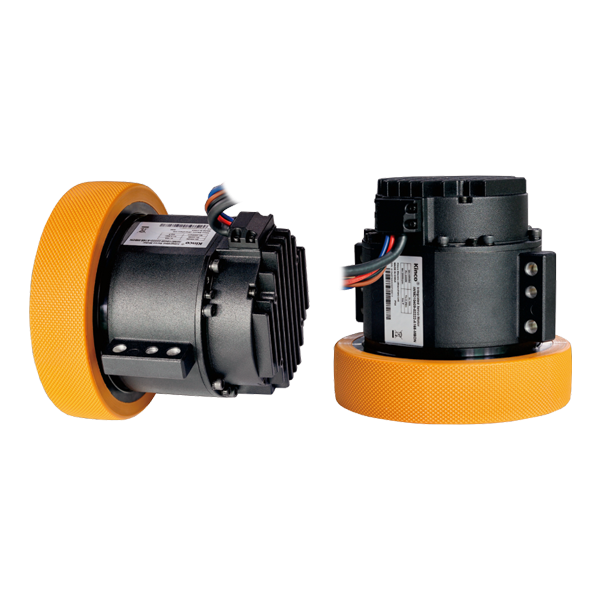

The KNC-IWMC10409 Integrated Servo Wheel includes a Servo Driver, Servo Motor, Gearhead and Rubber Wheel, all highly integrated in one unique product. This Integrated Servo Wheel creates a compact Servo System which uses less space than a typical Servo System, facilitating downsizing. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 8497 oz-in. The Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate in position control mode with either pulse and direction inputs, internal position points, or internal speed points.
- 24-60VDC
- 165mm Wheel Frame Size
- 104mm Motor Frame Size
- Singleturn Magnetic Encoder
- 1.9m/s Rated Linear Speed
- 2974 oz-in Rated Torque
- Standard CANopen Communication
- Position and Speed Control
- 24V Logic Power Supply
