KNC-PKS-FD134S-08-80S-MAK-DSU

KNC-PKS-FD134S-08-80S-MAK-DSU

KNC-PKS-FD144S-10-80S-AAK-DSH

KNC-PKS-FD144S-10-80S-AAK-DSH

KNC-PKS-FD134S-08-80S-MBK-DSU

Unit Price:
$812.00
Quantity Discount
  • Buy 10 for $789.13 each and save 3%
  • Buy 25 for $735.94 each and save 9%
  • Buy 50 for $690.31 each and save 15%
  • Buy 100 for $647.51 each and save 20%
Inventory:
1
In stock
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 338
Rated Current (Arms) 19
Inertia (oz-in-sec2) 0.01556
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.11
Inductance (mH) 0.4
Brake (24VDC) Yes
Motor Length (mm) 158
Shaft Diameter (mm) 19
Interested in large quantity discount?

Product Information

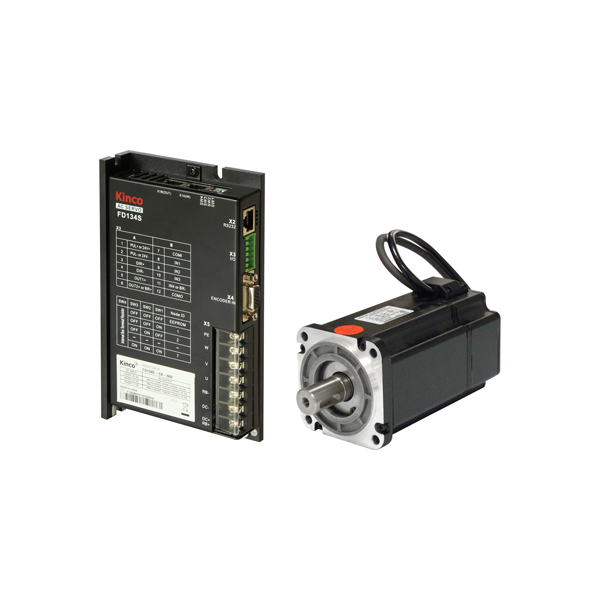

The KNC-PKS-FD134S-08-80S-MBK-DSU Servo System includes a 750 Watt KNC-SRV-SMC80S-0075-30MBK-3DSU Servo Motor with brake, operated by the KNC-SRV-FD134S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC80S-0075-30MBK-3DSU motor provides torque up to 1014 oz-in. The KNC-SRV-FD134S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Brake Cable, 5m Encoder Cable, and a Communication cable.

  • 24-70VDC
  • Rated Torque of 338 oz-in
  • Power Ratings up to 750 Watts
  • Maximum Speed of 3690 RPM
  • 16 Bit Single-Turn Magnetic Encoder
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port

User Manual (PDF)

Spec Sheet (PDF)

Software Download
