KNC-PKS-FD144S-10-80S-ABK-DSH

KNC-PKS-FD144S-10-80S-ABK-DSH

KNC-PKS-FD144S-10-80S-MBK-DSU

KNC-PKS-FD144S-10-80S-MBK-DSU

KNC-PKS-FD144S-10-80S-MAK-DSU

1pc Price:
$817.00
Quantity Discount
  • Buy 10 for $797.37 each and save 2%
  • Buy 25 for $780.12 each and save 5%
  • Buy 50 for $693.73 each and save 15%
  • Buy 100 for $658.21 each and save 19%
Inventory:
5
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 450
Rated Current (Arms) 26.4
Inertia (oz-in-sec2) 0.01996
Torque Constant KT (oz-in/A) 17.6
Resistance (ohms) 0.047
Inductance (mH) 0.2
Brake (24VDC) No
Motor Length (mm) 122.7
Shaft Diameter (mm) 19
Interested in large quantity discount?

Product Information

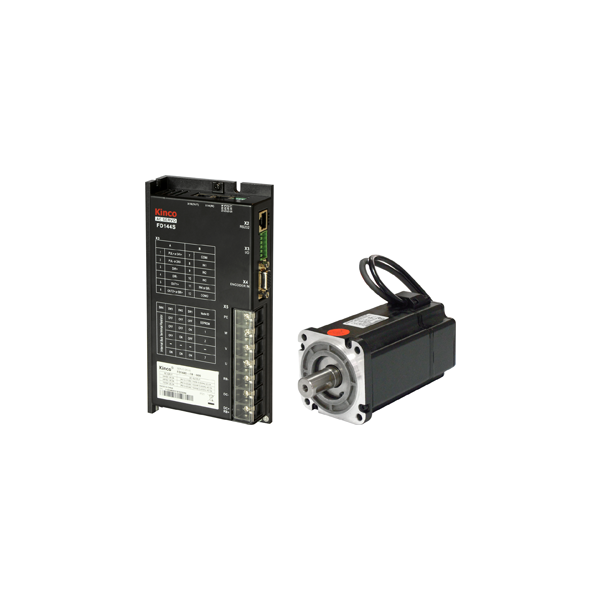

The KNC-PKS-FD144S-10-80S-MAK-DSU Servo System includes a 1000 Watt Servo Motor, KNC-SRV-SMC80S-0100-30MAK-5DSU, operated by the KNC-SRV-FD144S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC80S-0100-30MAK-5DSU motor provides torque up to 450 oz-in. The KNC-SRV-FD144S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Encoder Cable, and a Communication cable.

  • 24-70VDC
  • Rated Torque of 450 oz-in
  • Power Ratings up to 1000 Watts
  • Maximum Speed of 4100 RPM
  • Magnetoelectric Encoder
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control

User Manual (PDF)

Spec Sheet (PDF)

Software Download
