KNC-PKS-FD332S-10-80S-AAK-AKH
| Rated Voltage | 88-126 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 450 |
| Rated Current (Arms) | 10 |
| Inertia (oz-in-sec2) | 0.02619 |
| Torque Constant KT (oz-in/A) | 46.9 |
| Resistance (ohms) | 0.32 |
| Inductance (mH) | 1.6 |
| Brake (24VDC) | No |
| Motor Length (mm) | 167 |
| Shaft Diameter (mm) | 19 |
Interested in large quantity discount?
Product Information

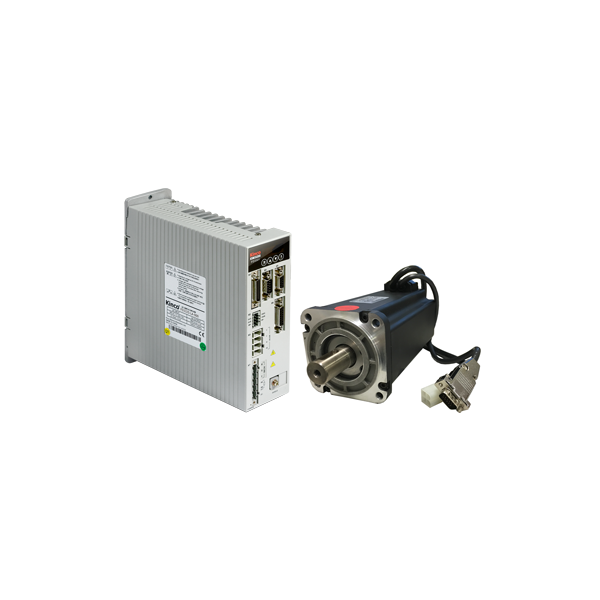

The KNC-PKS-FD332S-10-80S-AAK-AKH Servo System includes a 1000 Watt AC Servo Motor, SMH80S-0100-30AAK-3AKH, and the FD332S-LA-000 Drive. These packages provide easy start-up, convenience, and high performance. The SMH80S-0100-30AAK-3AKH motor provides torque up to 450 oz-in. The FD332S-LA-000 Drive offers current forward-feedback control, speed viewer, and inertia viewer, providing for improved response performance. This system also includes a 5m Motor Power Cable and a 5m Encoder Cable.
For replacement cables and additional servo system accessories, click here.
- 88-126VAC Single Phase Input
- Rated Torque of 450 oz-in
- Power Rating up to 1000 Watts
- 2500 PPR Incremental Encoder
- Maximum Speed of 5500 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed, and Torque Control
- Communication Ports: RS232 and RS485
