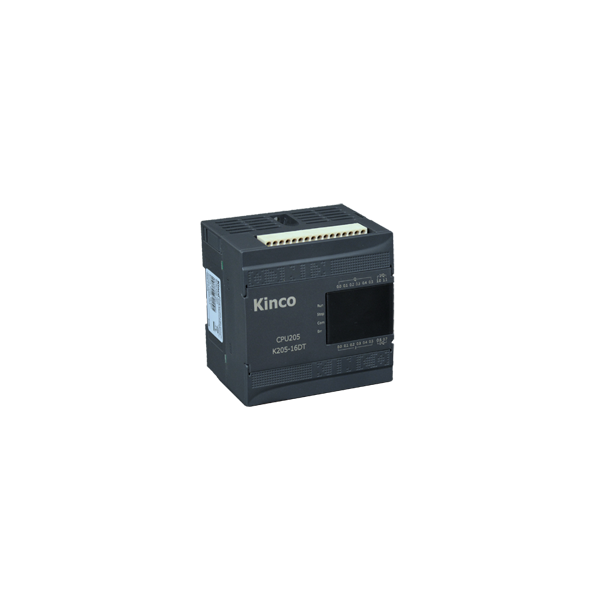

KNC-PLC-K205-16DR
| Module Type | CPU |
|---|---|
| Input Points | 6-10 |
| Input Type | Sinking or Sourcing |
| Output Points | 6-10 |
| Output Type | Relay |
| Rated Voltage | 24 VDC |
| Analog Input | N/A |
| Analog Output | N/A |
| COM Ports | Micro USB, RS485 |
Interested in large quantity discount?
Product Information
The PLC-K205 series provides special I/O functions, a Micro USB (USB 2.0) programming port, 4 high-speed counters, 3 high-speed pulse outputs, two RS485 communication ports, integrated digital input and output channels, and more. The high speed counters come in 10 different operation modes, support a single-phase frequency up to 50 KHz, and a dual-phase (A/B phase) frequency up to 50 KHz. In the 10 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit present value. The built-in high-speed pulse outputs can reach a maximum frequency of 50 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The PLC-K205 series is an ideal hub for data processing with field devices, such as temperature modules, servo drives, field busses and more.
Note: It is highly recommended to purchase a Micro USB Cable, AAUSB-ABMICRO-6, to properly connect to the HMI/Computer.
- Four High-Speed Counters
- Multiple Pulse Train Outputs
- Relay and/or Transistor Outputs
- 26 Modes and Inputs of High-Speed Counters
- Multiple Communication Ports
- Rated Input voltage DC 24V
- 6 Direct Input, 6 Direct Output, and 4 Direct Input/Output
