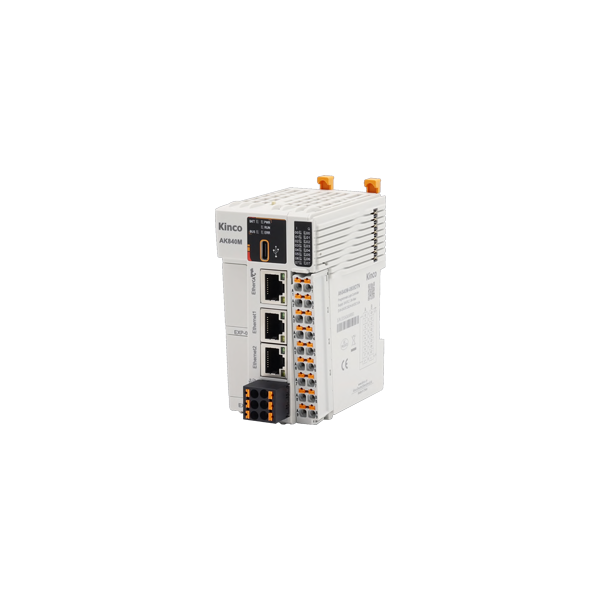

KNC-PLC-AK840M
| Module Type | CPU |
|---|---|
| Input Points | 8 |
| Input Type | Sinking or Sourcing |
| Output Points | 8 |
| Output Type | NPN, PNP |
| COM Ports | 1 EtherCAT, 2 Ethernet, 1 RS485 |
| Lead Time | Typ 10 Days |
Interested in large quantity discount?
Product Information
The KNC-PLC-AK840M Programmable Logic Controller (PLC) is a new generation of medium size
motion controllers designed to support a diverse range of industrial control needs. The AK840M series
integrates advanced functions and performance, including EtherCAT bus motion control and high-speed
backplane bus advantages. These PLCs synchronize with multiple workstations and robots in the industrial
manufacturing industry, complete complex process control and regulation for food processing, and
are capable of centralized control and monitoring of multiple areas or equipment through dual network
ports in the logistics and warehousing industry. The AK840M series products are capable of easily
adapting to complex control scenarios in multiple industries with superior design and performance.
- EtherCAT Bus CoDeSys Motion Controller
- 1 EtherCAT: 8-32 Axis Synchronization
- 2 Ethernet
- 1 RS485
- Rated Input voltage DC 24V
- 8 Digital Inputs, Sourcing/Sinking, Supports 2-Channel of High-Speed Counters
- 8 Digital Outputs, NPN
- Supports 16 Expansion Modules (Backplane Bus)
