KNC-PLC-K631-04TC

KNC-PLC-K631-04TC

KNC-PLC-K633-04IV

KNC-PLC-K633-04IV

KNC-PLC-K632-02IV

Unit Price:
$109.00
Quantity Discount
  • Buy 10 for $103.30 each and save 5%
  • Buy 25 for $98.60 each and save 10%
  • Buy 50 for $95.70 each and save 12%
  • Buy 100 for $92.81 each and save 15%
Inventory:
0
Out of Stock
More Information
Module Type Expansion Module, Analog Outputs
Input Points N/A
Input Type N/A
Output Points 2
Output Type 0-20mA, 4-20mA, 1-5VDC, 0-10VDC
Interested in large quantity discount?

Product Information

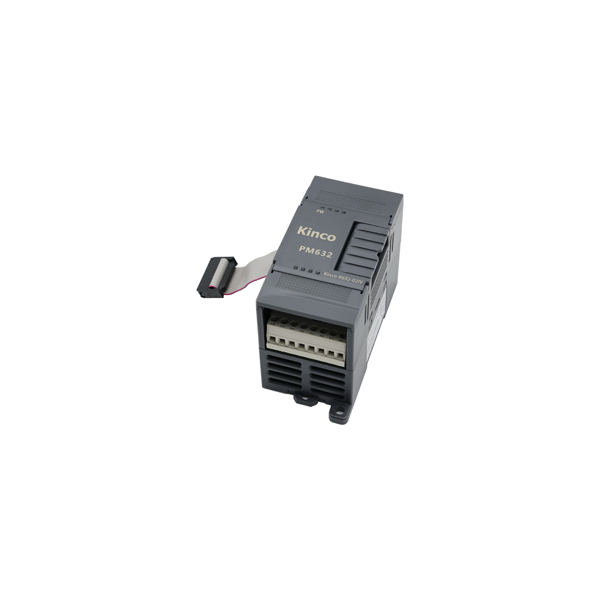

The PLC-K632-02IV is an Analog Output Expansion Module that reads in a digital value from the PLC and outputs either a voltage or current that reflects that digital value. This unit has a 12-bit digital output resolution allowing the user to increment in 976 μV or 3.9 μA steps. The PLC-K632-02IV can output a current range of 0-20 mA or 4-20 mA, and a voltage range of 1-5 VDC or 0-10 VDC. The K631 series has an accuracy of +/- 0.5% to ensure a precise reading. These modules are attached to the PLC-K6 CPU series to provide analog output capabilities. Up to 6 of the analog output modules can be attached to the K6 series CPUs, allowing for a maximum of 12 analog outputs or 14 analog outputs if using the PLC-K606EA-30AT.

  • Current and Voltage Outputs
  • Provides Wide Output Range
  • Up to 14 Analog Output Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable +/-0.3% Error

Software User Manual (PDF)

Spec Sheet (PDF)

Software Download
