KNC-SRV-MD80-075-DMAK-LA-000
| Rated Voltage (VAC) | 24-70 VDC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 338 |
| Rated Current (Arms) | 20 |
| Inertia (oz-in-sec2) | 0.01539 |
| Brake (24VDC) | No |
| Motor Length (mm) | 165 |
| Shaft Diameter (mm) | 19 |
Interested in large quantity discount?
Product Information

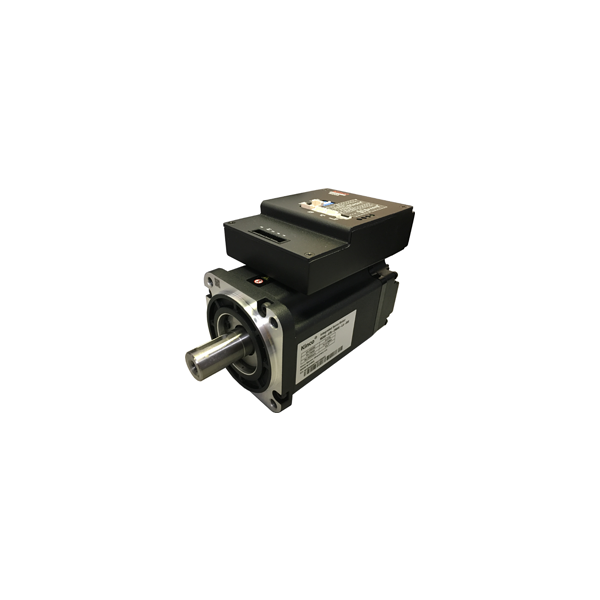

The KNC-SRV-MD80-075 Integrated Servo System includes a 750 Watt Servo Motor, operated by the Servo Drive. Each system includes a Servo Motor ranging from a size of 80mm square, power rating of 750 Watts, with a Servo Drive attached to the top of the Servo Motor. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 1015 oz-in. The Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, internal position points, or internal speed points.
- 750 Watt
- 24-70VDC
- 80mm Frame Size
- 16 bit Magnetic Absolute Encoder
- 3000 RPM Rated Speed
- 338 oz-in Rated Torque
- Modbus RTU or CANopen
- Position and Speed Control
- RS232 and RS485 Port
