KNC-SRV-SMH40S-0005-30AAK-4DKH
| Rated Torque (oz-in) | 23 |
|---|---|
| Rated Power (Watts) | 50 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 6500 |
| Rated Current (Arms) | 1.2 |
| Voltage | 70 VDC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00044 |
| Torque Constant KT (oz-in/A) | 18.74 |
| Resistance (ohms) | 4.2 |
| Inductance (mH) | 3.5 |
| Length (mm) | 85.3 |
| Weight (lbs) | 1.1 |
Interested in large quantity discount?
Product Information

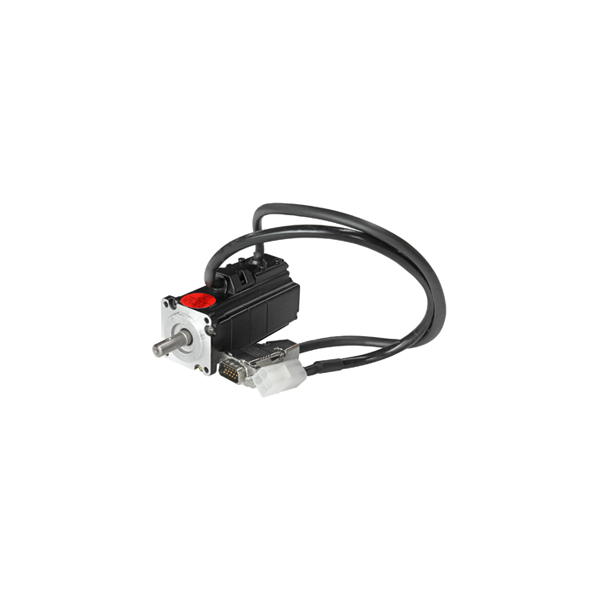

With a 40mm square flange size, the KNC-SRV-SMH40S-0005-30AAK-4DKH Servo Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 69 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder.
***Note: KNC-SRV-SMH40S-0005-30AAK-4DKH servo motors have been discontinued and are now LTSOH (Limited to Stock on Hand).***
- 70VDC Servo Motor
- 50W Power Rating
- Rated Torque of 23 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 6500 RPM
- Incremental Encoder
- IP65 for Body, IP54 Shaft Seal
- CE Certified
