KNC-VFD-KC200-4T-03R7G
| Input Voltage | Three-Phase, 380-480VAC |
|---|---|
| Rated Power (HP) | 5 |
| Rated Current (A) | 10 |
| Installation Type | Wall-Mount |
| IP Rating | IP20 |
| Cooling Method | Fan |
| CE Certified | Yes |
| Lead Time | Typ 28 Days |
Interested in large quantity discount?
Product Information

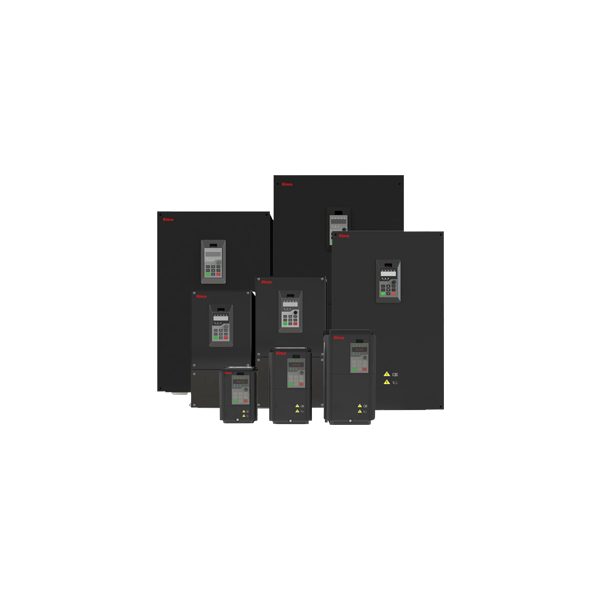

The KNC-VFD-KC200 series is a universal vector VFD that is mainly used to control and adjust
the speed and torque of Three-Phase asynchronous motors. With its superior independent air
duct design it has many benefits such as convenient installation, easy wiring, tremendous heat
dissipation, top of the line performance and comprehensive protection. The KNC-VFD-KC200
series is a complete system, process oriented and strict in the development process of software,
hardware, and structure, with attention to detail and the user experience. These VFD’s can be
used for light load, heavy load, extremely heavy load equipment such as lifting, cement, rubber
tires, industrial water treatment, fan ventilation systems, stirring, air conditioner cooling systems,
wood working machinery, and various automated production equipment. The KNC-VFD-KC200
series is mainly used to control and adjust the speed and torque of Three-Phase asynchronous
motors.
- Three-Phase 380-480V (50Hz/60Hz)/3700W
- 6 Digital Inputs & 2 Digital Outputs
- 2 Analog Inputs & 2 Analog Outputs
- 2 Relay Outputs
- 1 High Speed Pulse Input (Multiplexed with DI6 Terminal)
- 1 High Speed Pulse Output (Multiplexed with DO2 Terminal)
- Supports Optional 5V, 12V, 24V Incremental PG Card
- Modbus RS485
- CANopen
