LRM34
LRM34 | Anaheim Automation, Inc.
Information
.png)

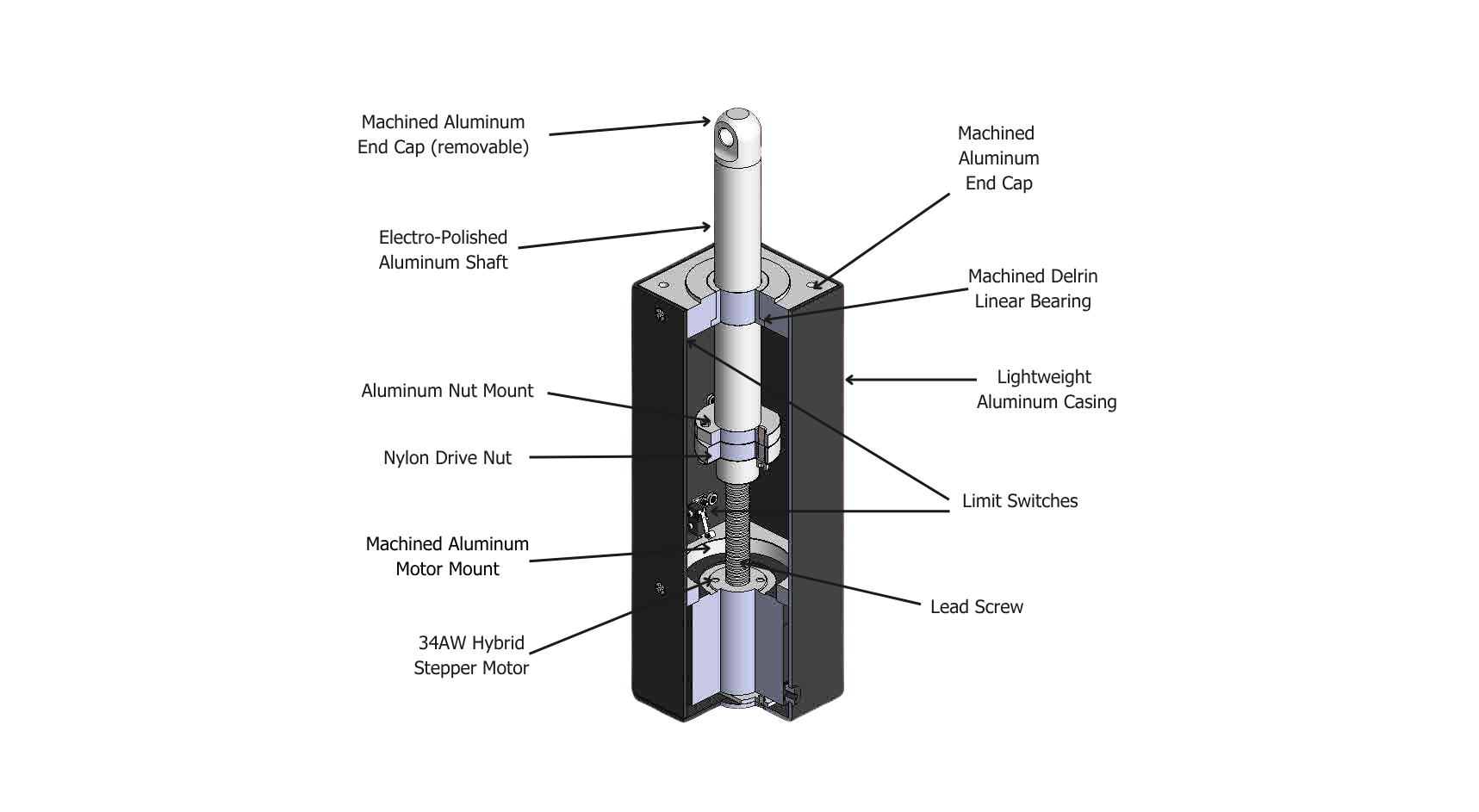

The LRM34 Series is a Precision Rod Actuator with a maximum load capacity of 528 pounds. This rod actuator is powered by a linear step motor, boasts speeds up to 0.45in/s, and the stroke lengths up to 12in.
- 102mm Square
- Push Pull Actuator
- Max Load up to 528lbs
- 1.8° Step Angle
- Stroke Length up to 12in
- Multiple Lead Screw Options
- Made in the USA!
| Item | Stroke Length (in) | Max Speed (in/sec) | Travel Per Step (mm) | Screw Lead (in) | Load Capacity (lbs) | Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|
| LRM34-12-1063 | 12 | 0.45 | 0.0005 | 0.1 | 528 | N/A | Call Us |
| LRM34-06-1063 | 6 | 0.45 | 0.0005 | 0.1 | 528 | N/A | Call Us |
