LRM23-12-206A

LRM23-12-206A

LRM34-12-1063

LRM34-12-1063

LRM34-06-1063

1pc Price:
$974.00
Quantity Discount
  • Buy 10 for $883.60 each and save 9%
  • Buy 25 for $827.30 each and save 15%
  • Buy 50 for $791.31 each and save 19%
  • Buy 100 for $738.46 each and save 24%
Inventory:
More Information
Stroke Length (in) 6
Max Speed (in/sec) 0.45
Travel Per Step (mm) 0.0005
Screw Lead (in) 0.1
Load Capacity (lbs) 528
Lead Time Typ 70 Days
Interested in large quantity discount?

Product Information

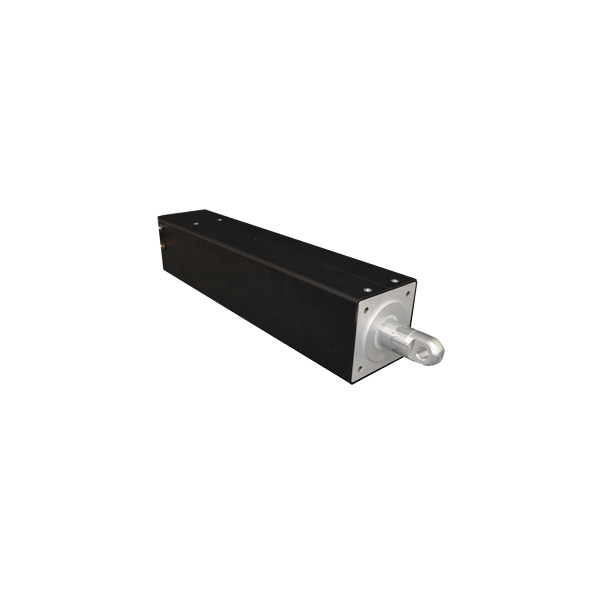

The LRM34 Series is a Precision Rod Actuator with a maximum load capacity of 528 pounds. This rod actuator is powered by a linear step motor, boasts speeds up to 0.45in/s, and the stroke lengths up to 12in.

  • 102mm Square
  • Push Pull Actuator
  • Max Load up to 528lbs
  • 1.8° Step Angle
  • Stroke Length up to 12in
  • Multiple Lead Screw Options

Spec Sheet (PDF)
