CPC-AR15 Rails
CPC-AR15 Rails | Anaheim Automation, Inc.
Information
.png)

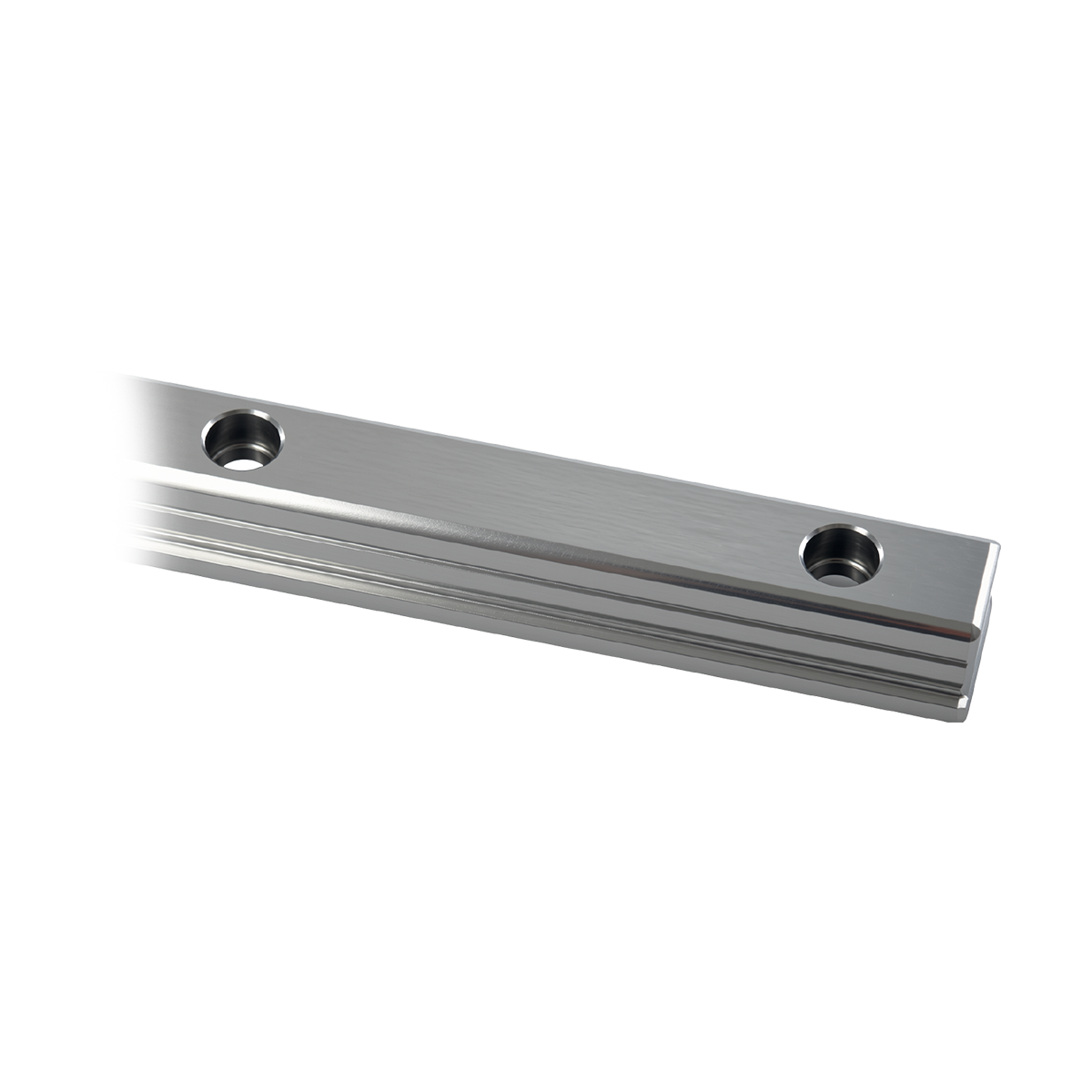

CPC-AR15N Rails are matched for CPC-xRC15 Series Blocks, and are available in custom lengths, and continuous lengths of up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 15mm
- Use with: CPC-xRC15 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

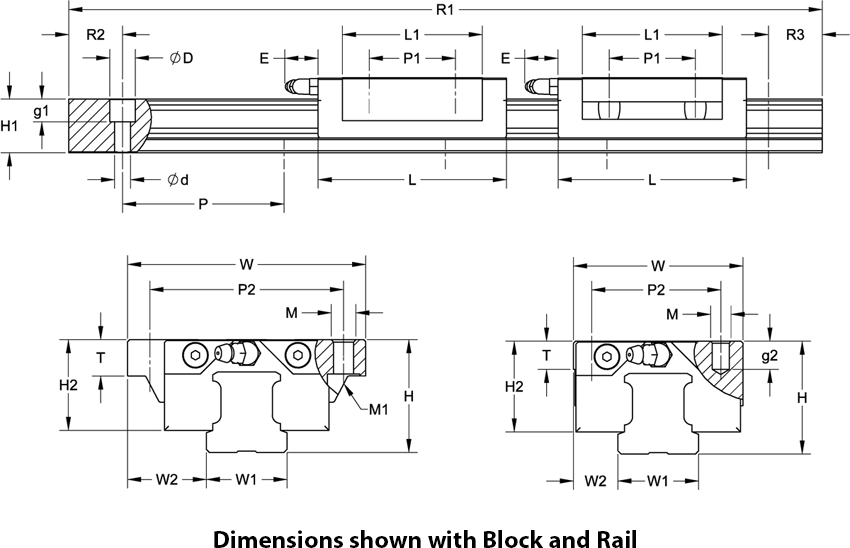

| Item | Rail Dimension (mm) | Rail Weight (lbs) | 1pc Price (USD) | Add to Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | P | D | d1 | g1 | R1 | R2 | R3 | ||||
| CPC-AR15N-4000L | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 4000 | 30 | 30 | 11.38 | $404.00 | Call Us Contact Us |
| CPC-AR15N-3900-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 3900 | 30 | 30 | 11.1 | $421.00 | Call Us Contact Us |
| CPC-AR15N-3700-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 3700 | 20 | 20 | 10.53 | $397.00 | Call Us Contact Us |
| CPC-AR15N-3500-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 3500 | 10 | 10 | 9.96 | $379.00 | Call Us Contact Us |
| CPC-AR15N-3300-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 3300 | 30 | 30 | 9.39 | $361.00 | Call Us Contact Us |
| CPC-AR15N-3100-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 3100 | 20 | 20 | 8.82 | $336.00 | Call Us Contact Us |
| CPC-AR15N-2900-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 2900 | 10 | 10 | 8.25 | $300.00 | Call Us Contact Us |
| CPC-AR15N-2700-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 2700 | 30 | 30 | 7.68 | $300.00 | Call Us Contact Us |
| CPC-AR15N-2500-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 2500 | 20 | 20 | 7.11 | $276.00 | Call Us Contact Us |
| CPC-AR15N-2300-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 2300 | 10 | 10 | 6.55 | $258.00 | Call Us Contact Us |
| CPC-AR15N-2100-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 2100 | 30 | 30 | 5.98 | $240.00 | Call Us Contact Us |
| CPC-AR15N-1900-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 1900 | 20 | 20 | 5.41 | $215.00 | Call Us Contact Us |
| CPC-AR15N-1700-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 1700 | 10 | 10 | 4.84 | $197.00 | Call Us Contact Us |
| CPC-AR15N-1500-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 1500 | 30 | 30 | 4.27 | $179.00 | Call Us Contact Us |
| CPC-AR15N-1300-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 1300 | 20 | 20 | 3.7 | $155.00 | Call Us Contact Us |
| CPC-AR15N-1100-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 1100 | 10 | 10 | 3.13 | $137.00 | Call Us Contact Us |
| CPC-AR15N-0900-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 900 | 30 | 30 | 2.56 | $119.00 | Call Us Contact Us |
| CPC-AR15N-0700-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 700 | 20 | 20 | 2 | $94.00 | Call Us Contact Us |
| CPC-AR15N-0500-10-10 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 500 | 10 | 10 | 1.43 | $76.00 | Call Us Contact Us |
| CPC-AR15N-0300-30-30 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 300 | 30 | 30 | 0.86 | $58.00 | Call Us Contact Us |
| CPC-AR15N-0100-20-20 | 15 | 15 | 60 | 7.5 | 4.5 | 5.3 | 100 | 20 | 20 | 0.29 | $34.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
