CPC-xRC30 Blocks | Anaheim Automation, Inc.

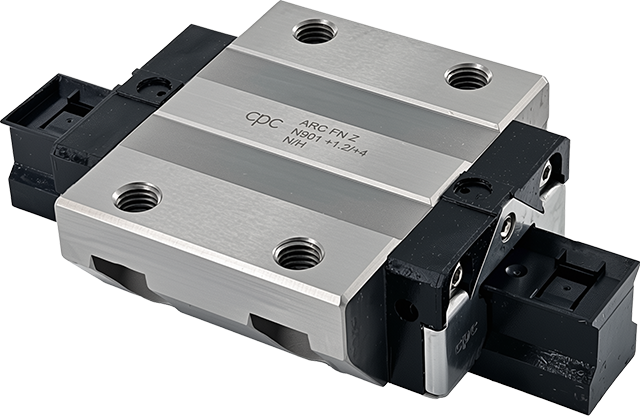

The CPC-xRC30 Series Linear Guide Bearing Blocks are matched for the CPC-AR30N Rail. They are ideal for dynamic loads up to 32.7 kN (7,351 lbs) and static loads over 58.9 kN (13,241 lbs). The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter and an increased number of steel balls, which provides higher load capacities. Available in three lengths, (Short, Standard, or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse. Compatible CPC-AR30N Rails are sold separately.

For Rail Width: 28mm
Block Width: 60 or 90mm
Assembly Height: 42-45mm
Dynamic Load: Up to 7,351 lbs.
Static Load: Up to 13,241 lbs.
Rail Lengths up to 4000mm

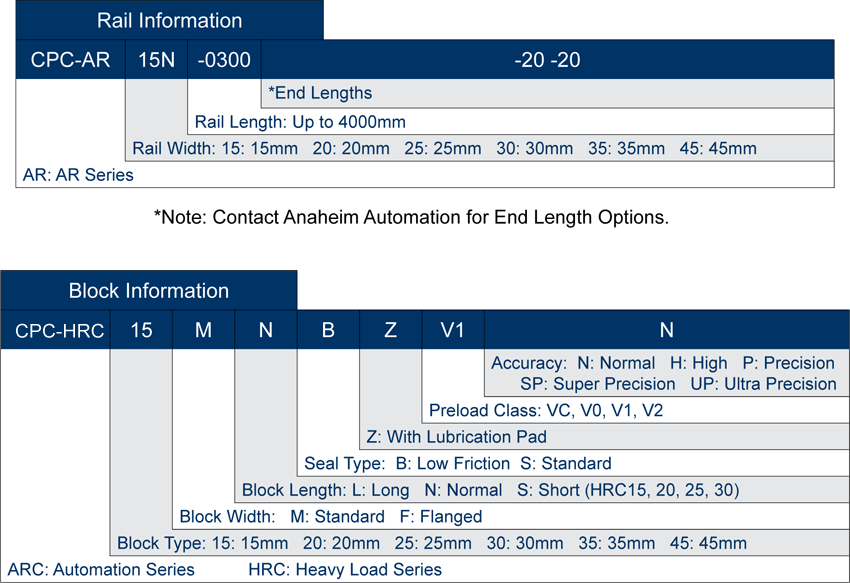

Options: End Seal, Preload, Accuracy, and More

Item	Fabrication Dimension		Block Dimension (mm)										Load Capacities (kN)		Static Moment(Nm)			Block Weight (lbs)	1pc Price (USD)	Add to Cart
Item	H	W2	W	L	L1	h2	P1	P2	E	M x g2	M1	T	C	C0	Mr0	Mp0	My0	Block Weight (lbs)	1pc Price (USD)	Add to Cart
Sort by Name CPC-HRC30MNSZV0N	H 45	W2 16	W 60	L 95.5	L1 71.5	h2 38.2	P1 40	P2 40	E 12	M x g2 M8x12	M1 -	T 12	C 32.8	C0 53.7	Mr0 845	Mp0 565	My0 565	Block Weight (lbs) 1.975	1pc Price (USD) $78.00
Sort by Name CPC-HRC30FNSZV0N	H 42	W2 31	W 90	L 95.5	L1 71.5	h2 35.2	P1 52	P2 72	E 12	M x g2 M10x12	M1 M8	T 12	C 32.8	C0 53.7	Mr0 845	Mp0 565	My0 565	Block Weight (lbs) 2.4471	1pc Price (USD) $82.00
Sort by Name CPC-ARC30MNSZV0N	H 42	W2 16	W 60	L 95.5	L1 71.5	h2 35.2	P1 40	P2 40	E 12	M x g2 M8x12	M1 -	T 14	C 32.8	C0 53.7	Mr0 845	Mp0 565	My0 565	Block Weight (lbs) 1.7637	1pc Price (USD) $75.00
Sort by Name CPC-ARC30FNSZV0N	H 42	W2 31	W 90	L 95.5	L1 71.5	h2 35.2	P1 40	P2 72	E 12	M x g2 M10x12	M1 M8	T 12	C 32.8	C0 53.7	Mr0 845	Mp0 565	My0 565	Block Weight (lbs) 2.6455	1pc Price (USD) $81.00

*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
