CPC-xRC45 Blocks
CPC-xRC45 Blocks | Anaheim Automation, Inc.
Information

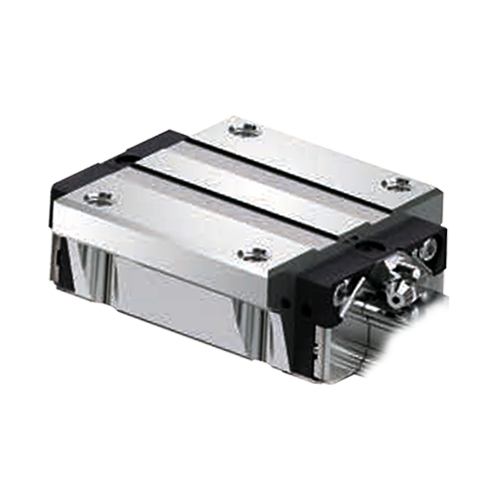

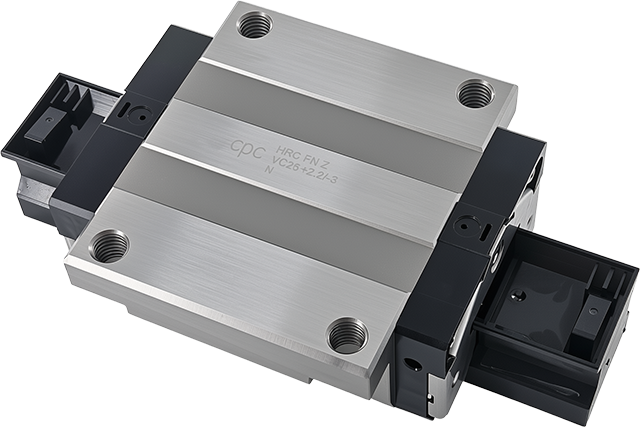

CPC-xRC45 Series Linear Guide Bearing Blocks are matched for the CPC-AR45N Rail. They are ideal for dynamic loads over 89.5 kN (20,120 lbs) and static loads over 169.1 kN (38,015 lbs). The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter and an increased number of steel balls, which provides higher load capacities. Available in two lengths, (Standard or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse. Compatible CPC-AR45N Rails are sold separately.
- For Rail Width: 45mm
- Block Width: 86-120mm
- Assembly Height: 60-70mm
- Dynamic Load: Up to 20,120 lbs.
- Static Load: Up to 38,015 lbs.
- Rail Lengths up to 4000mm
- Options: End Seal, Preload, Accuracy, and More
| Item | Fabrication Dimension | Block Dimension (mm) | Load Capacities (kN) | Static Moment(Nm) | Block Weight (lbs) | 1pc Price (USD) | Add to Cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | W2 | W | L | L1 | h2 | P1 | P2 | E | M x g2 | M1 | T | C | C0 | Mr0 | Mp0 | My0 | ||||
| CPC-HRC45FLBZV0N | 60 | 37.5 | 120 | 171.5 | 138.5 | 50.7 | 80 | 100 | 14 | M12x15 | M10 | 18 | 89.5 | 169.1 | 4430 | 3460 | 3460 | 9.43578 | $167.00 | Call Us Contact Us |
| CPC-HRC45FNSZV0N | 60 | 37.5 | 120 | 135.5 | 102.5 | 50.7 | 80 | 100 | 14 | M12x15 | M10 | 18 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 6.05609 | $145.00 | Call Us Contact Us |
| CPC-HRC45FNBZV0N | 60 | 37.5 | 120 | 135.5 | 102.5 | 50.7 | 80 | 100 | 14 | M12x15 | M10 | 18 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 6.05609 | $145.00 | Call Us Contact Us |
| CPC-HRC45MLSZV0N | 70 | 20.5 | 86 | 171.5 | 138.5 | 60.7 | 80 | 60 | 14 | M10x20 | - | 14 | 89.5 | 169.1 | 4430 | 3460 | 3460 | 8.950768 | $165.00 | Call Us Contact Us |
| CPC-HRC45MLBZV0N | 70 | 20.5 | 86 | 171.5 | 138.5 | 60.7 | 80 | 60 | 14 | M10x20 | - | 14 | 89.5 | 169.1 | 4430 | 3460 | 3460 | 8.950768 | $165.00 | Call Us Contact Us |
| CPC-HRC45MNSZV0N | 70 | 20.5 | 86 | 135.5 | 102.5 | 60.7 | 60 | 60 | 14 | M10x20 | - | 14 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 6.15971 | $135.00 | Call Us Contact Us |
| CPC-HRC45MNBZV0N | 70 | 20.5 | 86 | 135.5 | 102.5 | 60.7 | 60 | 60 | 14 | M10x20 | - | 14 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 6.15971 | $135.00 | Call Us Contact Us |
| CPC-ARC45MLSZV0N | 60 | 20.5 | 86 | 171.5 | 138.5 | 50.7 | 80 | 60 | 14 | M10x17 | - | 14 | 89.5 | 169.1 | 4430 | 3460 | 3460 | 6.966607 | $165.00 | Call Us Contact Us |
| CPC-ARC45MLBZV0N | 60 | 20.5 | 86 | 171.5 | 138.5 | 50.7 | 80 | 60 | 14 | M10x17 | - | 14 | 89.5 | 169.1 | 4430 | 3460 | 3460 | 6.966607 | $165.00 | Call Us Contact Us |
| CPC-ARC45MNSZV0N | 60 | 20.5 | 86 | 135.5 | 102.5 | 50.7 | 60 | 60 | 14 | M10x17 | - | 14 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 4.6738 | $121.00 | Call Us Contact Us |
| CPC-ARC45MNBZV0N | 60 | 20.5 | 86 | 135.5 | 102.5 | 50.7 | 60 | 60 | 14 | M10x17 | - | 14 | 71.3 | 122.1 | 3200 | 1910 | 1910 | 4.6738 | $121.00 | |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
