LRM23-12-1041
| Stroke Length (in) | 12 |
|---|---|
| Max Speed (in/sec) | 1.2 |
| Travel Per Step (mm) | 0.001 |
| Screw Lead (in) | 0.2 |
| Load Capacity (lbs) | 110 |
Interested in large quantity discount?
Product Information

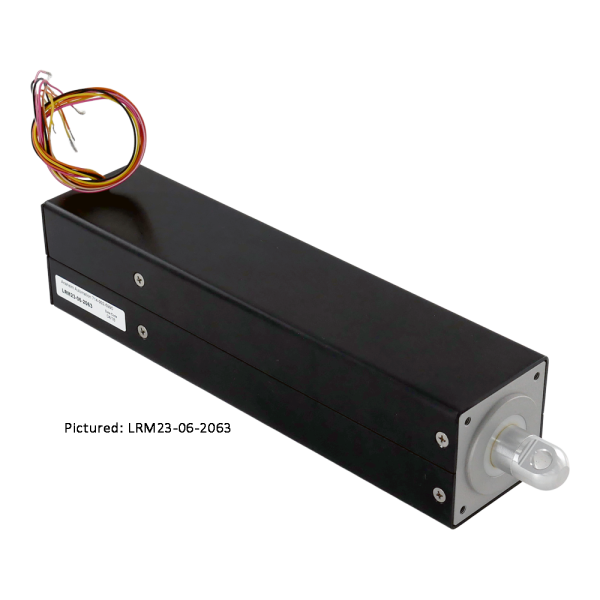

The LRM23 Series is a Precision Rod Actuator with a maximum load capacity of 360 pounds. This rod actuator is powered by a linear step motor, boasts speeds up to 1.2in/s, and the stroke lengths up to 12in.
- 68mm Square
- Push Pull Actuator
- Max Load up to 360lb
- 1.8° Step Angle
- Stroke Length up to 12in
- Multiple Lead Screw Options
.png)
Spec Sheet (PDF)
