LSC-AAH-375-SFR-0250-12-RA
| Screw Diameter (in) | 0.375 |
|---|---|
| Dynamic Load (lbs) | 20 |
| Screw Length (in) | 12 |
| Lead (in) | 0.025 |
| Static Load (lbs) | 100 |
Interested in large quantity discount?
Product Information

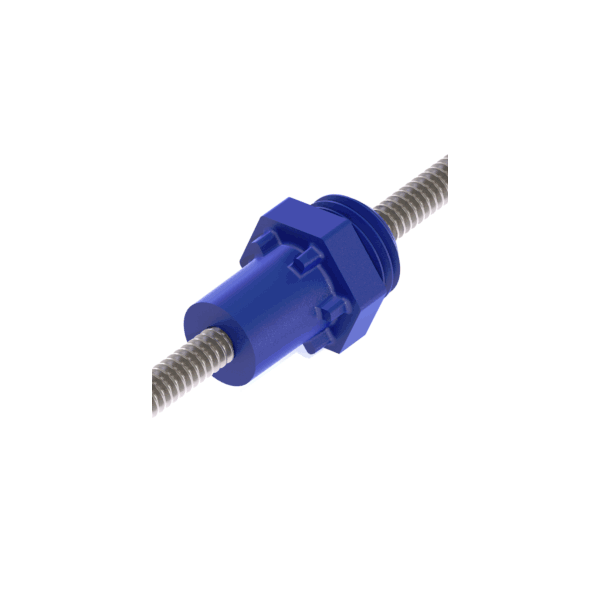

Lead Screws are cost-effective and self locking, they do not require a braking system. Also, they provide the accuracy and repeatability required by most mechanical design applications. The SF, ST, AF, and AT Series Lead Screws have a diameter of 1/8" to 1.00" with a .024" to 3.0" lead. The ends of the screw can be customized per your drawing. Please contact Anaheim Automation to discuss your specific requirements.
Note: Self locking will require an efficiency lower than 35%.
- 3/8" Screw Diameter
- 0.025" to 1.0" Leads
- Available in Left and Right Hand Threads
- Dynamic Loads up to 125 lbs
- Static Loads up to 625 lbs
- Standard with a Plastic Nut
- Bronze and Custom Nut Types Available Upon Request
- Custom Screw Machining Available Upon Request
.png)
.png)
.png)
.png)
.png)
Spec Sheet (PDF)
