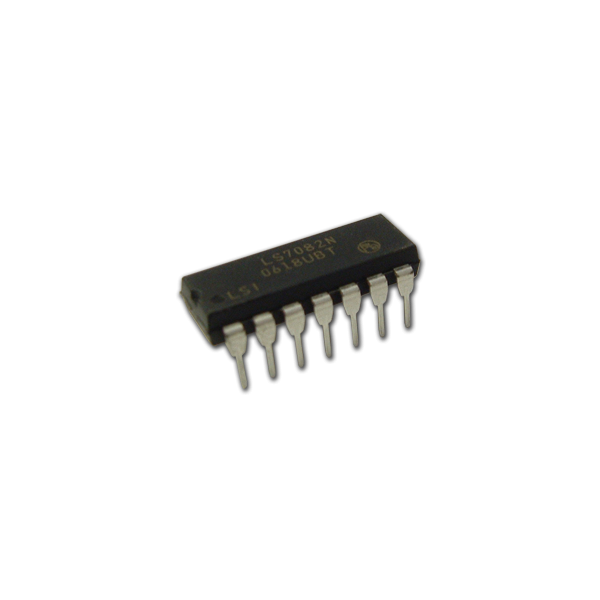

LSI-LS7082N
| Package Type | PDIP |
|---|---|
| Pin Count | 14 |
Interested in large quantity discount?
Product Information
The LS7082N is a CMOS quadrature clock converter. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7082, are converted to strings of Up Clocks and Down Clocks. Pulses derived from the Index Track of an encoder, when applied to the INDEX input, produce absolute position reference pulses which are synchronized to the Up Clocks and Down Clocks. These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing of the encoder.
NOTE: LSI-LS7082N and LSI-LS7082N-S are Limited to Stock on Hand. Recommended replacements are LSI-LS7082N1 and LSI-LS7082N1-S.
- x1, x2 and x4 Mode Selection
- Up to 16MHz Output Clock Frequency
- INDEX Input and Output
- Programmable Output Clock Pulse Width
- On-Chip Filtering of Inputs for Optical or Magnetic Encoder Applications
- TTL and CMOS compatible I/Os
- RoHS Compliant
