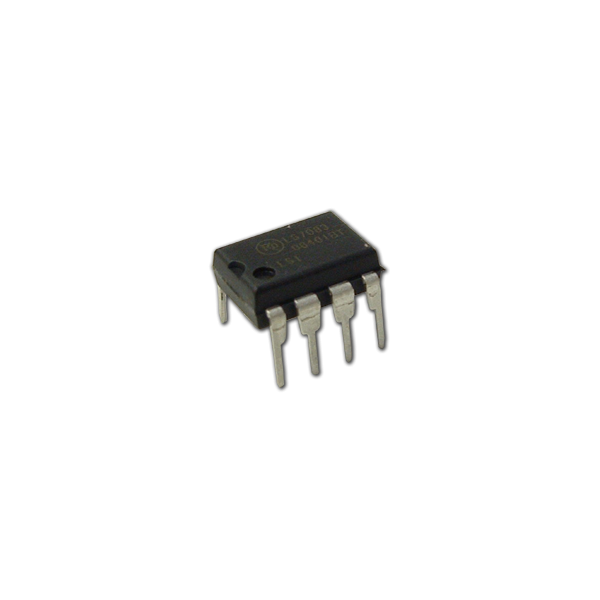

LSI-LS7083N
| Package Type | PDIP |
|---|---|
| Pin Count | 8 |
Interested in large quantity discount?
Product Information
The LS7083N and LS7084N are CMOS quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7083N or LS7084N, are converted to strings of Up Clocks and Down Clocks (LS7083N) or to a Clock and an Up/Down direction control (LS7084N). These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing. This series has a minimum purchase requirement of 10 pieces, regardless of stock.
- x1, x2 and x4 Mode Selection
- Up to 16MHz Output Clock Frequency
- INDEX Input and Output
- Programmable Output Clock Pulse Width
- On-Chip Filtering of Inputs for Optical or Magnetic Encoder Applications
- TTL and CMOS compatible I/Os
- RoHS Compliant
