LSI-LS7083N-S

LSI-LS7083N-S

LSI-LS7084N-S

LSI-LS7084N-S

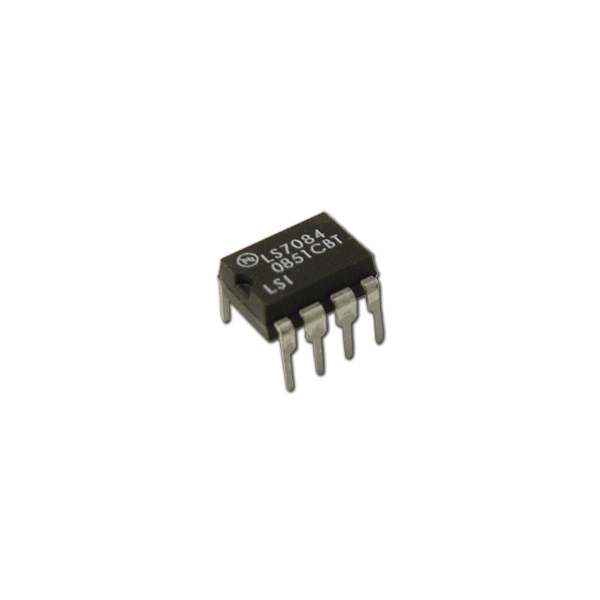

LSI-LS7084N

1pc Price:
$5.00
Quantity Discount
  • Buy 10 for $3.74 each and save 25%
  • Buy 25 for $3.69 each and save 26%
  • Buy 50 for $3.65 each and save 27%
  • Buy 100 for $3.02 each and save 40%
Inventory:
100
More Information
Package Type PDIP
Pin Count 8
Interested in large quantity discount?

Product Information

The LS7083N and LS7084N are CMOS quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7083N or LS7084N, are converted to strings of Up Clocks and Down Clocks (LS7083N) or to a Clock and an Up/Down direction control (LS7084N). These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing. This series has a minimum purchase requirement of 10 pieces, regardless of stock.

  • x1, x2 and x4 Mode Selection
  • Up to 16MHz Output Clock Frequency
  • INDEX Input and Output
  • Programmable Output Clock Pulse Width
  • On-Chip Filtering of Inputs for Optical or Magnetic Encoder Applications
  • TTL and CMOS compatible I/Os
  • RoHS Compliant

User Manual (PDF)
