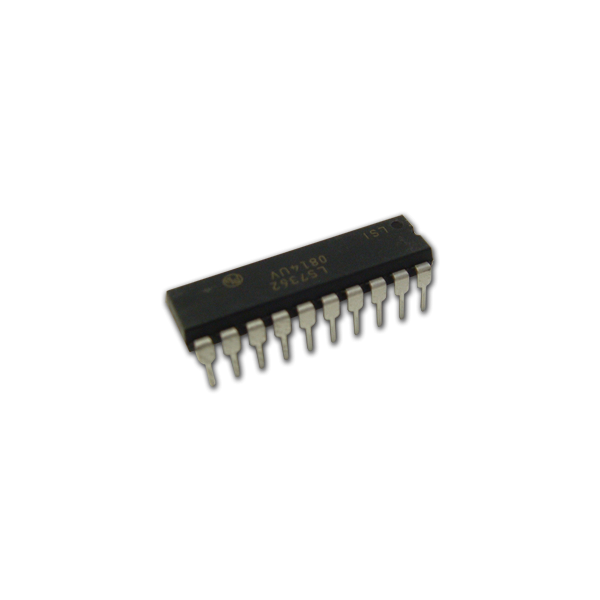

LSI-LS7362C-S
| Package Type | SOIC |
|---|---|
| Pin Count | 20 |
Interested in large quantity discount?
Product Information
the LS7362C is a MOS integrated circuit designed to generate the signals necessary to control a three phase or four phase brushless DC motor. The circuit responds to changes at the SENSE inputs to provide electronic commutation of the motor windings. A positive braking feature is provided to effect rapid deceleration. The LS7362C is designed for driving Bipolar and Field Effect Transistors. Note: This series has a minimum purchase requirement of 10 pieces, regardless of stock.
- Speed Control by Pulse Width Modulating (PWM) Only the Low-Side Drivers Reduces Switching Losses in Level Converter Circuitry for High-Voltage Motors.
- Open or Closed-Loop Motor Speed Control
- +5 to +28 Volt Operation (Vss - Vdd)
- Externally Selectable Input to Output Code for 60°, 120°, 240°, or 300° Electrical Sensor Spacing
- Three or Four-Phase Operation
- Analog Speed, Forward/Reverse, and Output Enable Control
- Positive Static Braking
- Overcurrent Sensing
- Six Outputs Drive Switching Bridge Directly
- RoHS Compliant
User Manual (PDF)
