MBC25081TB

1pc Price:
$69.00
Quantity Discount
  • Buy 50 for $64.39 each and save 7%
  • Buy 100 for $56.67 each and save 18%
Inventory:
244
More Information
Current Range (A) 0.5 - 2.5
Voltage Requirement 12 - 24 VDC
Steps per Revolution 200 - 1600
Pulse Generator / Controller -
Power Supply PSAM24V2.7A
Interested in large quantity discount?

Product Information

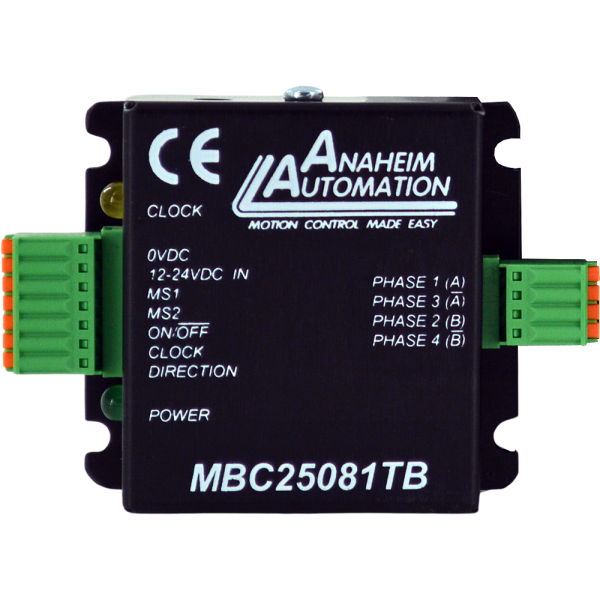

The MBC25081TB is a miniature, fully enclosed stepper motor driver perfect for applications where space is precious. With a footprint less than 2.5" square, this microstepping driver provides great performance and flexibility for a driver its size. The MBC25081TB's greatest asset however, is how easy it is to use. The detachable spring loaded terminal blocks make it simple to install and eliminates the additional connector and cable accessories commonly associated with compact stepper drivers. The MBC25081TB has divisors of 8, 4, 2 and full step. A power supply is required and must be purchased separately.
See Accessories on this website for driver adders such as shielded motor cables, connectors, and power supplies. The MBC25081 driver is also available with a programmable indexer, power supply and enclosure (see DPE series). For compatible high-torque motors, consider our popular 08Y, 11Y, 14Y, 15Y, 17Y, 23Y and 24Y (up to 2.5 amps).

  • Compact Microstep Driver
  • Selectable Divisors of 2, 4, 8 and Full-step
  • Detachable Terminal Blocks
  • 0.5-2.5 Amp Output Current
  • Compatible with Size 8, 11, 14, 17, 23 and 24 Frame Stepper Motors (model dependent)
  • 24VDC Compatible Input Signals
  • Sinking and Sourcing Inputs
  • 12-24VDC Operating Voltage
  • Low Cost - Excellent Value
  • Easy to Install
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
