MDC010-050101

1pc Price:
$147.00
Quantity Discount
  • Buy 10 for $135.07 each and save 8%
  • Buy 25 for $124.28 each and save 15%
  • Buy 50 for $108.67 each and save 26%
  • Buy 100 for $105.82 each and save 28%
Inventory:
175
More Information
Input Range 6 - 50VDC
Max Power (W) 250
Peak Current (A) 10
Feedback Loop Fixed
Interested in large quantity discount?

Product Information

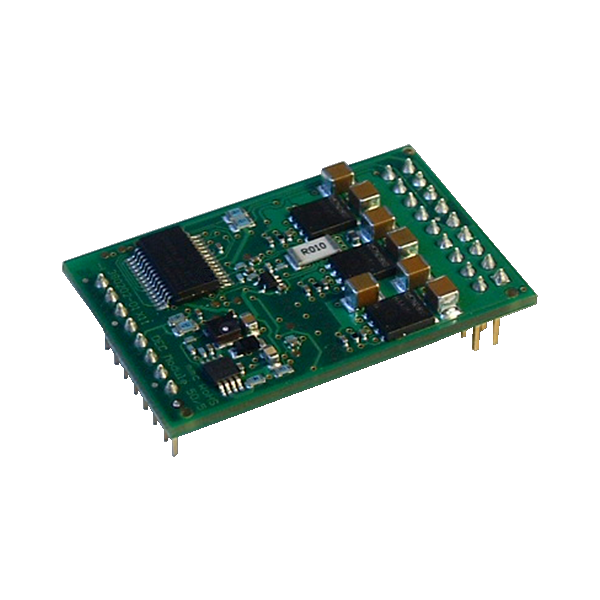

The MDC010-050101 Speed Controller has a very compact design with a high efficiency 1-Quadrant digital ouput driver which offers a operating voltage of 50VDC, while maintaining a rated output current of a 5A (10A Peak). The controller also offers a large number of inputs and outputs such as the speed monitor, current limiting, speed ranges, direction of rotation, enable, operating status, etc. While offering all these features the MDC010-050101 offers many protective features against overcurrent, undervoltage and overvoltage, short circuit and thermal overload to ensure the controller runs efficiently and effectively. The MDC010-050101 deliviers a maximum speed of 80,000 RPM to the shaft of the Brushless DC Motor. Anaheim Automation also offers an evaluation board for easy and immediate intial start-up and testing, as well as a full line of Brushless DC Motors.

  • Digital Closed or Open-Loop Speed Controller
  • 6-50 VDC Voltage Range
  • Maximum Speed of 80,000 RPM
  • Digital Signal Presets Direction of Rotation
  • Continuous Output Current of 5A (10A Peak)
  • Protection Against Thermal Overload
  • Small Open Board Design
  • Motor Blockage Protection
  • Status Indication
  • Easy Connectivity/Intgration into Motherboard
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

RoHS Compliant
