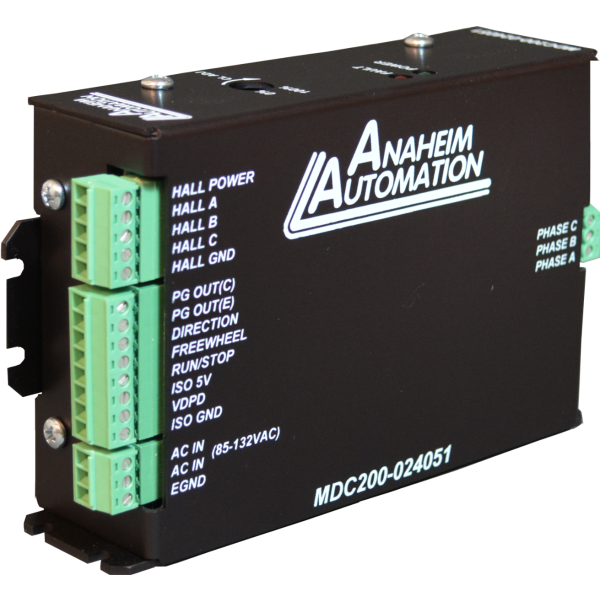

MDC200-024051
| Input Range | 85 - 135VAC |
|---|---|
| Max Power (W) | 50 |
| Peak Current (A) | 5 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information
The MDC200-024051 driver is a velocity control driver designed to drive DC Brushless Motors from a supply of 120VAC. With a motor bus voltage of 24V, maximum phase current of 5 A (peak) and power output of 50 W, this driver eliminates the need for an external power supply. Using hall sensor feedback, a constant velocity mode is present. The driver is protected against over current (cycle-by-cycle), hall sensor error and under voltage. When an error occurs, a fault light is turned on to notify the user. When an over current occurs the driver will shutoff. An isolated 5V input is needed to power the user inputs. A 0.5 - 5V analog signal is needed to control the speed of the motor.
- Fixed Current Limit Setting at 5 Amps Up to 50W Power Output
- External Speed Control
- Run/Stop, Freewheel and Direction Inputs
- 24VDC Motor Voltage Bus
- 2-Quadrant Operation
- Hall Sensor Feedback
- Constant Velocity Mode
- Requires 85-135 VAC Power Input
- Dual Mounting Option
- RoHS Compliant
