PCL601XCE
| Voltage Requirement | 5 - 24 VDC |
|---|---|
| I/O | 6/8 |
| Max Step Rate | 50kHz |
| Programmable | Yes |
| Limit Switches | Yes |
| Communication Bus | RS232/RS485 |
Interested in large quantity discount?
Product Information

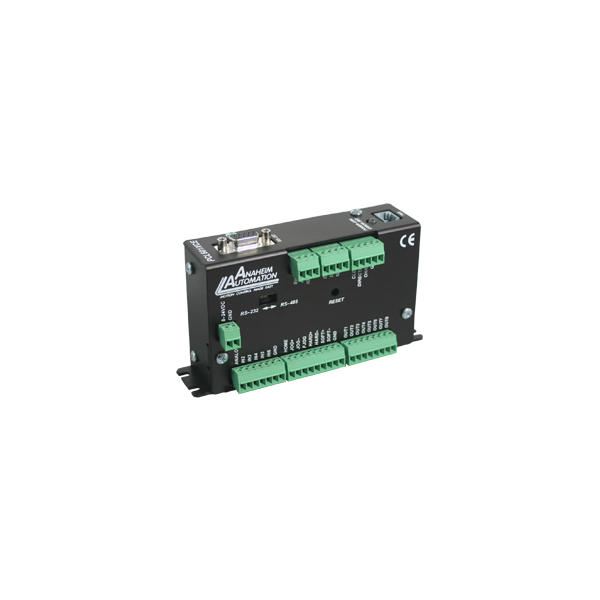

The PCL601XCE Programmable Controller provides you with a complete motion solution in a compact package. It simplifies programming tasks and provides the essential features for any positioning system. The PCL601XCE features the ability to connect to a PC and instantly provide movement for a stepper motor. The PCL601XCE's programming capabilities allows you to develop motion routines, turn on discrete outputs, monitor inputs, and much more. The controller contains 2KB of nonvolatile stored programming space and encoder feedback. It achieves communication from a PC or any RS232/RS485 machine controller serial port. The PCL601 Series can be purchased with a step motor driver (see Driver Packs). Accessories such as a TWS7 (7 decade thumbwheel switch), 485SD9TB (RS232-RS485 data converter) and AA9MFC-6 (serial port cable), are purchased seperately. See Accessories on this website for details.
- Cost Effective motion Control Solution
- Easy to Use Windows Software Included
- Stored Program Capabilities
- 24V Compatible Inputs
- 0-5V Analog Input for Speed or Distance
- Encoder Feedback
- Multi-Drop Capabilities
- Compact and Rugged Construction
- CE Certified and RoHS Compliant
