PKS-PRO-AEA-EC-08-JP24
| Rated Voltage | 200 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 338 |
| Rated Current (Arms) | 4 |
| Inertia (oz-in-sec2) | 0.02081 |
| Torque Constant KT (oz-in/A) | 86.8 |
| Resistance (ohms) | 2 |
| Inductance (mH) | 19.25 |
| Brake (24VDC) | Yes |
| Motor Length (mm) | 194 |
| Shaft Diameter (mm) | 19 |
Interested in large quantity discount?
Product Information
PKS-PRO-AEA-EC-08-JP24 is LTSOH (Limited to Stock on Hand)

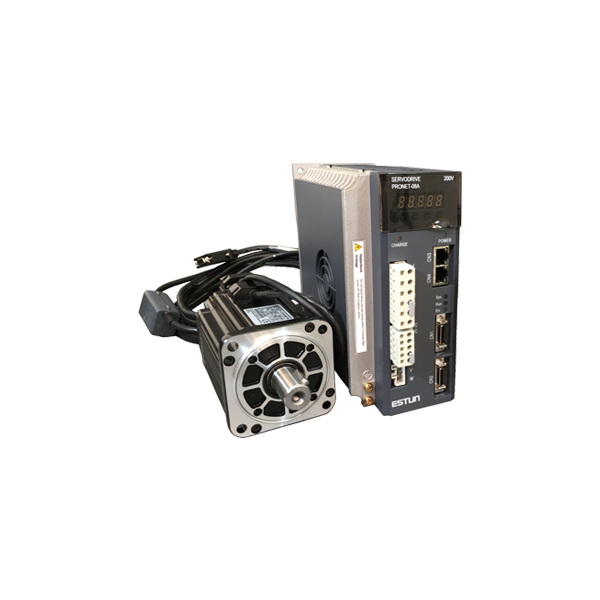

The PKS-PRO-AEA-EC-08 EtherCAT Servo System includes a 750 Watt EMJ-08 Servo Motor operated by the PRONET-08AEA-EC EtherCAT Servo Drive. These packages are ideal for easy start-ups, convenience, and performance. The Servo Motors included in these packages provide up to 338 oz-in of Rated Torque. The PRONET-08AEA-EC Drive offers current forward-feedback control, acceleration forward-feedback control, speed viewer, Ethernet networking, and inertia viewer; providing for improved response performance. Each system includes a 5m Motor Power Cable and a 5m Encoder Cable.
- Updates 1000 Inputs/Outputs of Information
- Rated Torque of 338 oz-in
- Power Ratings up to 750 Watts
- Open Network Based on Ethernet
- 17-bit Absolute Encoder
- Maximum Speed of 4,500 RPM
- Supports Topologies - Line, Tree, and Star Type
- Brake Option Available
- CE Certified
