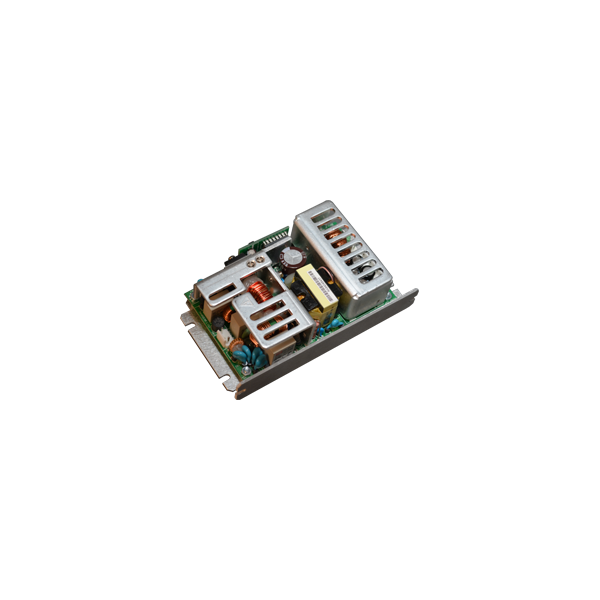

PSAM24V5.2A
| Input Voltage (VAC) | 90-264VAC, Single phase, 47/63Hz |
|---|---|
| Output Voltage (V) | 24V |
| Total Power (W) | 125W |
Interested in large quantity discount?
Product Information
The PSAM-125 Power Supplies have a single voltage output with power capabilities of up to 125 watts. With an adjustable output, these power supplies are efficient to run Anaheim Automation's lines of low current microsteppers and programmable controllers. With a compact size of 5.375" x 3.275" x 1.82" and dual mounting position "L Bracket," the PSAM power supplies can be mounted just about anywhere.
- Input Voltage: 90-264VAC
- Output Voltage: 24V and 48V
- Peak Current: 2.1A to 4.2A
- Power: 125W
- Low Cost, High Reliability
- High Efficiency, Low Working Temperature
- Built in EMI Filter, Low Ripple Noise
- 100% Full Load Burn-In Test
- Short Circuit/Over Voltage/Overload Protection
- Compact Size, Light Weight
.png)
.png)
Spec Sheet (PDF)
