SPDRO-4
| Input Range (VDC) | 12-48 |
|---|---|
| Hall Input Range (VDC) | 3.5-24 |
| Display Range | 0-9999 |
| Pole Range | 1-8 |
| Gear Ratio Range | 1-999 |
Interested in large quantity discount?
Product Information

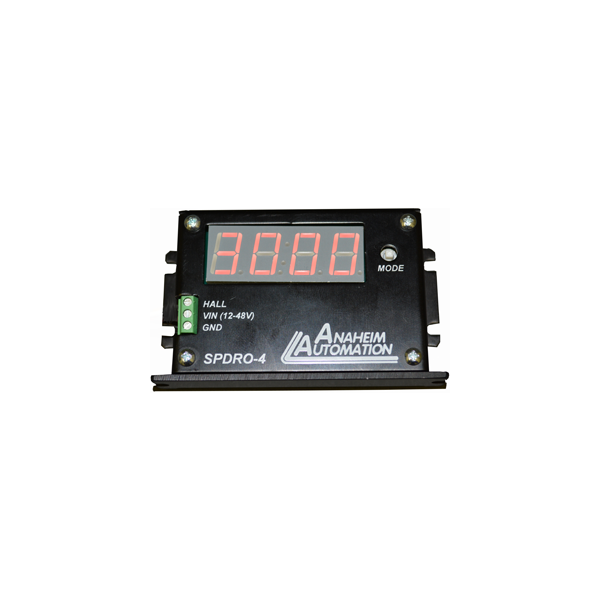

The SPDRO-4 is a digital speed readout, also known as a "panel tachometer" or "industrial tachometer," that can be used with any of Anaheim Automation's brushless drivers/controllers. It has a power input that ranges from 12-48VDC so it can use the same power supply as the driver/controller. There is one input on the SPDRO-4 that connects to Hall A, Hall B, Hall C, or PG out. This input is rated from 3.5VDC to 24VDC. This tachometer has a 4 digit display so it can show the speed from 0 to 9999 RPM. The SPDRO-4 allows you to verify the speed of any brushless motor without connecting to a computer or using an external tachometer on the motor itself. The SPDRO-4 has a mode button which allows you to change the value of the motor poles between 1, 2, 4, 6 and 8 and the gears from 1-999. A gear ratio of 1 is for no gear box.
- 4 Digit RPM Readout
- Displays 0-9999 RPM
- Operates from 12V-48V
- Hall input voltage 3.5V-24V
- Mode button to change between 1, 2, 4, 6, and 8 poles
- Gear ratios from 1-999
