Stepper Drivers with Programmable Controllers

Anaheim Automation's Stepper Motor Drivers with Programmable Controllers are available in both modular and enclosed Driver Pack styles, in three current ranges.

Current Range: 0.5 to 10.0 Amps
Bilevel and Microstep Drivers
Modular and Enclosed Packaging Styles
Single-Axis, Daisy-Chained for Multi-Axes

Driver, Controller and Power Supply Packages
Easy-to-Use, FREE Software with Purchase
Designed & Manufactured in the USA

Featured Series

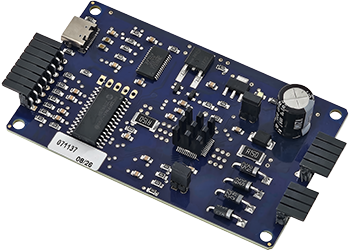

MBC20SC1

10-30VDC Power Requirement
2.0 Amps/Phase Output Current
Bipolar Microstepping Divisors of 256, 128, 64, 32, 16, 8, 4, 2, or Full Step
Highly Configurable Ramp Settings
Quadrature Encoder Feedback for Precise Movement

DPC50501

Single-Axis Driver Pack with Programmable Controller
Contains a Bipolar Microstep Driver with an Output Capacity of 0.5 to 5 Amps
Incorporates a Simple 18-Command Programmable Controller, with a Power Supply in an Enclosure

DPD75601

Single-Axis Driver Pack with Programmable Controller
Contains a Bilevel Driver with an Output Capacity of 1 to 7 Amps
Incorporates a 40-Command Programmable Controller, with a Power Supply in an Enclosure

DPE25601

Single-Axis Driver Pack with Programmable Controller
Contains a Microstep Driver with an Output Capacity of 0.5 to 2.5 Amps
Contains a Programmable Controller with 2 Kbytes of Non-Volatile Stored Programming Space and Quadrature Encoder Feedback
Contains a 24 Watt Power Supply Packaged in an Enclosure
With 40 Commands, Driver Pack Provides Flexible, Independent Control of Stepper Motors From Computers, or any Machine Controller with a Serial or USB port

DPE25611

Single-Axis Driver Pack with Programmable Controller
Contains a Microstep Driver with an Output Capacity of 0.5 to 2.5 Amps
Contains a Programmable Controller with 2 Kbytes of Non-Volatile Stored Programming Space and Quadrature Encoder Feedback
Contains a 24 Watt Power Supply Packaged in an Enclosure
With 40 Commands, Driver Pack Provides Flexible, Independent Control of Stepper Motors From Computers, or any Machine Controller with a Serial or USB port

DPMLA601

Line Powered Microstep Driver Pack
Integrated Programmable Controller
Easy-to-Use Windows Software Included
24V Compatible Inputs
0-5V Analog Input for Speed or Distance
10 Amp Maximum Current Output
Smooth Microstepping Resolution
Compact and Rugged Construction

DPN10601

Single-Axis Driver Pack with a 1 to 10 Amp Microstep Driver, a PCL601XCE Programmable Controller, a Matched Power Supply, and Cooling Fan
Can Operate from a Computer or Any Machine Controller with a Serial Port
Capable of Standalone Operation as an Embedded Machine Controller
Microstepping Resolutions: 200 to 12,800 steps/revolution
Easy-to-Use Windows Software Included

DPY50601

Single-Axis Driver Pack with Programmable Controller
Contains a Bipolar Microstep Driver with an Output Capacity of 0.5 to 5 Amps
Incorporates a 40-Command Programmable Controller, with a Power Supply in an Enclosure

DPY50611

Single-Axis Driver Pack with Programmable Controller
Contains a Bipolar Microstep Driver with an Output Capacity of 0.5 to 5 Amps
Incorporates a 40-Command Programmable Controller, with a Power Supply in an Enclosure

Choose from a variety of drivers with current ranges of 0 to 2.5Amps, 2.6 to 7.0Amps, or 7.1 to 12.5Amps, as well as several controller options with varying features and command sets. FREE easy-to-use software is included with purchase.

For assistance with making a selection, please contact our applications engineers to discuss your project requirements.
