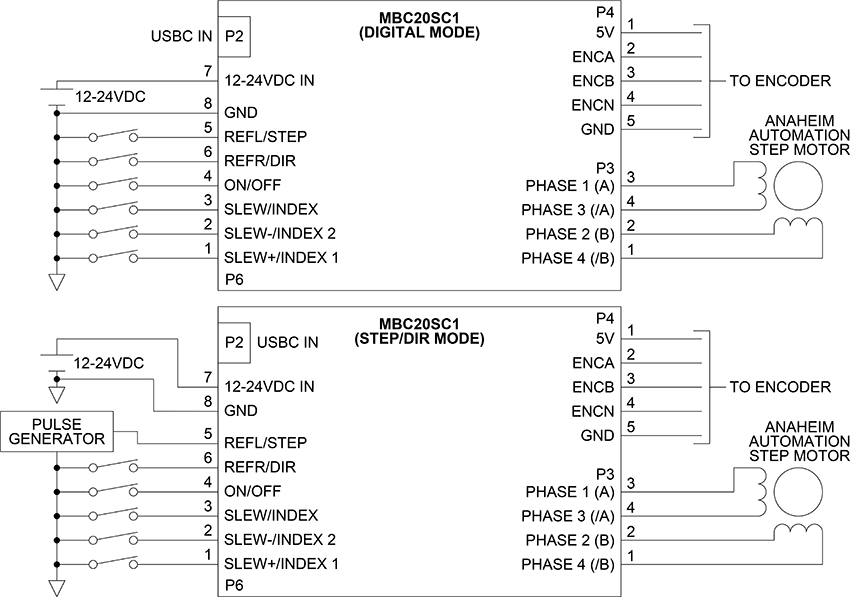

The MBC20SC1 is a 2.0 amps/phase bipolar micro step driver capable of running four, six, and eight lead step motors. The MBC20SC1 has an output range of 0.06 to 2.0 amps/phase and operated off 10VDC minimum to 30VDC maximum. The inputs can run from either open collector or TTL level logic outputs. The MBC20SC1 features include built-in over temperature shutdown and short circuit protection, adjustable current settings allows the unit to run efficiently without sacrificing performance, quadrature encoder feedback for precise movements, highly customizable ramp settings, and

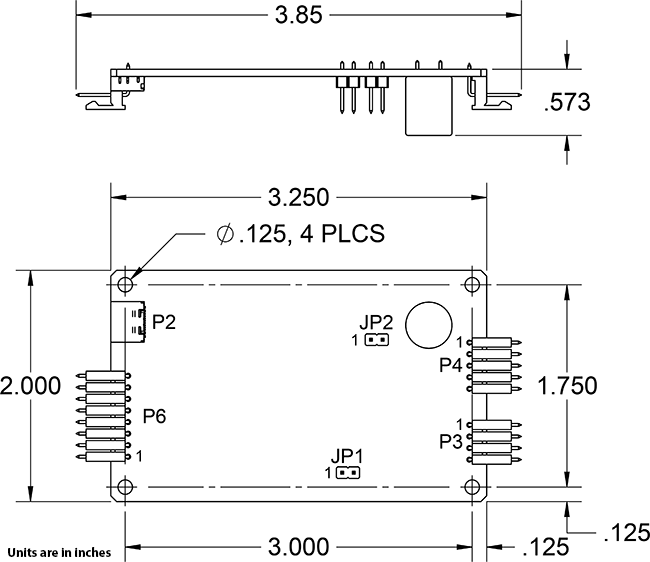

programmable index profiles that can be saved to the devices on-board memory for standalone use. The MBC20SC1 is a low profile, open frame package where compact size meets high performance. A power supply is required, purchased separately.
