TGM42-075-40-12V-040A-25R-LW6
| Minimum Purchase Quantity | 25 |
|---|---|
| Frame Size (mm) | 42 |
| Holding Torque (g-cm) | 2500 |
| Bipolar Series RMS Current (A) | 0.4 |
| Bipolar Series Resistance Per Phase (ohm) | 30 |
| Bipolar Series RMS Voltage (V) | 12 |
| # of Lead Wires | 6 |
| Weight (lbs) | 0.46 |
Interested in large quantity discount?
Product Information

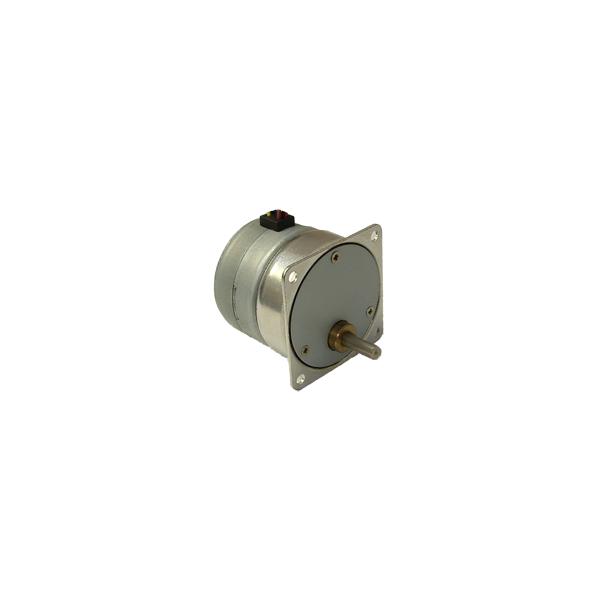

The TGM42 Series are small Permanent Magnet DC gearmotors measuring 42mm in diameter, and providing from 15.28 to 55.55 ounce inches of holding torque. These CE Certified motors provide a 7.5° step angle, 10:1, 25:1, or 50:1 gear ratios, and a six-lead wire connection as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 4000 g-cm Holding Torque (55.55 oz-in)
- 10:1, 25:1, and 50:1 Gear Ratios
- 42mm Diameter
- CE Certified and RoHS Compliant
.png)
Spec Sheet (PDF)
