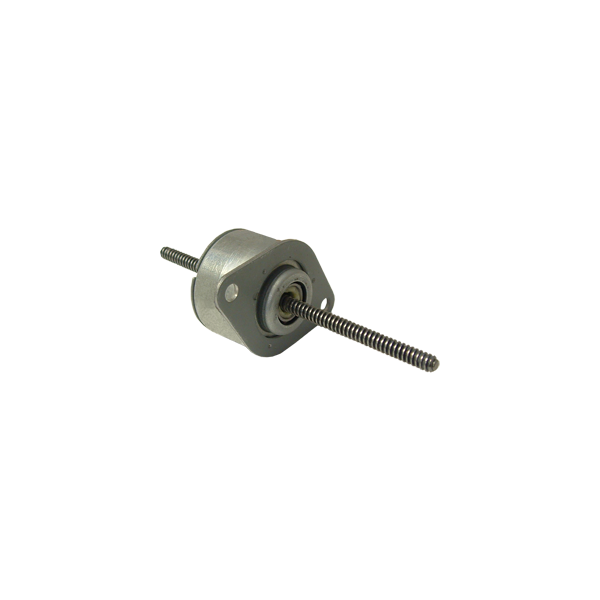

TSFNA25-150-21-050-LW4
| Bipolar RMS Current (A) | 0.5 |
|---|---|
| Bipolar RMS Voltage (V) | 12 |
| Travel Per Step (mm) | 0.0016 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.19 |
| Maximum Force (lbs) | 6.75 |
| Motor Length (in) | 3.15 |
| Screw Length (in) | 3.15 |
Interested in large quantity discount?
Product Information
The TSFNA25 Series Non-Captive Linear Actuators are the perfect choice for cost effective linear motion. The stepper motor internally converts rotary motion to linear motion via a rotating nut and a leadscrew. This actuator eliminates the need for other rotary-to-linear conversions such as belt and pulleys, rack and pinions, or external ball screws. Motion designs can be simplified, production costs lowered and product life enhanced. The motors can be customized to fit your machine requirements. The motor comes in a standard 6-lead configuration and is available in a 4-lead configuration. The winding can be customized to perfectly match your voltage, current, and maximum operating speed. Special screw modifications, cables and connectors are also available upon request.
- Permanent Magnet Stepper Motor Actuator
- Precise Motrion at a Low Cost
- 30 Newton of Force
- 25 mm diameter
- Screw Travels Through the Motor
- Inexpensively Create Linear Travel
- CE Certified and RoHS Compliant
.png)
TSFNA25-150-21 dimension
.png)
TSFNA25-150-17 dimension
.png)
TSFNA25-150-21 wiring
.png)
TSFNA25-150-17 wiring
