TSFNA57-075-26-023-LW6
| Bipolar RMS Current (A) | 0.16 |
|---|---|
| Bipolar RMS Voltage (V) | 5 |
| Travel Per Step (mm) | 0.00098 |
| # of Lead Wires | 6 |
| Weight (lbs) | 0.66 |
| Maximum Force (lbs) | 6.96 |
| Motor Length (in) | 6 |
| Screw Length (in) | 6 |
Interested in large quantity discount?
Product Information

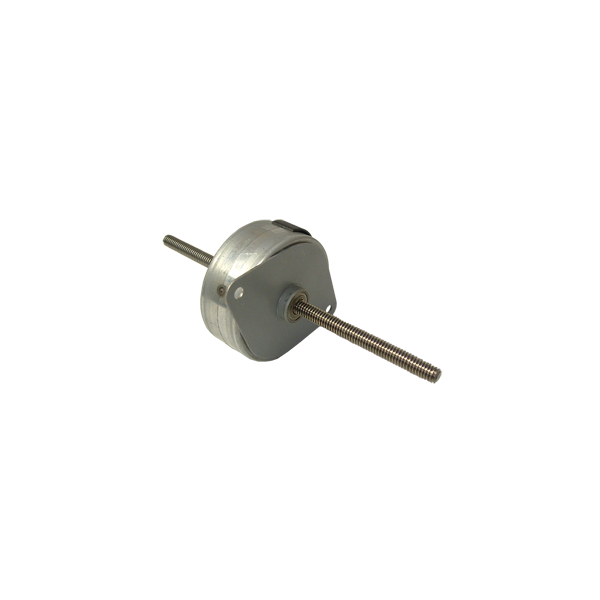

The TSFNA57-075-26-023-LW6 Linear Actuator is the perfect choice for cost effective linear motion. The stepper motor internally converts rotary motion to linear motion via a rotating bronze nut and a leadscrew. This actuator eliminates the need for other rotary-to-linear conversions such as belt and pulleys, rack and pinions, or external ball screws. Motion designs can be simplified, production costs lowered and product life enhanced. The motors can be customized to fit your machine requirements. The motor comes in a standard 6-lead configuration and is available in a 4-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special screw modifications, cables and connectors are also available upon request.
- Cost Effective Linear Actuator
- Step Motor with Internal Conversion to Linear Output
- Up to 24 LB of Thrust
- Can be Customized for
- Screw Options
- Leadwires
- Cables and Connectors
- CE Certified and RoHS Compliant
