TSMNA42-010-24-100-LW6
| Bipolar RMS Current (A) | 0.7 |
|---|---|
| Bipolar RMS Voltage (V) | 5 |
| Travel Per Step (mm) | 0.001 |
| # of Lead Wires | 6 |
| Weight (lbs) | 0.34 |
| Maximum Force (lbs) | 22.5 |
| Motor Length (in) | 5.62 |
| Screw Length (in) | 5.62 |
Interested in large quantity discount?
Product Information

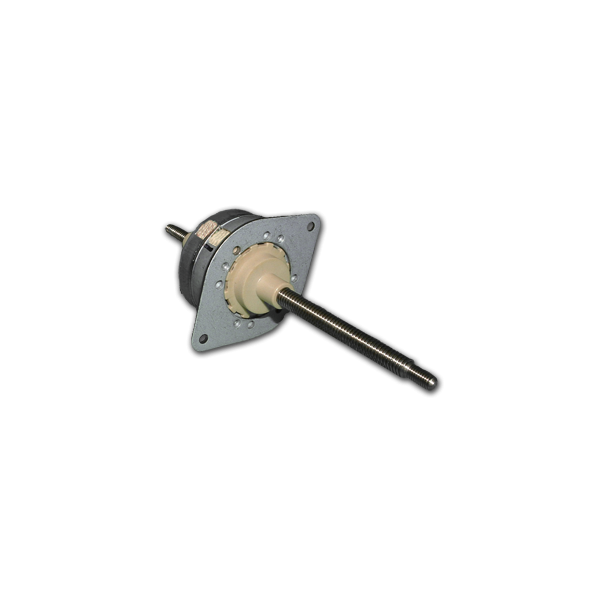

The TSMNA42 Series Non-Captive Linear Actuators are the perfect choice for cost effective linear motion. The stepper motor internally converts rotary motion to linear motion via a rotating nut and a leadscrew. This actuator eliminates the need for other rotary-to-linear conversions such as belt and pulleys, rack and pinions, or external ball screws. Motion designs can be simplified, production costs lowered and product life enhanced. The motors can be customized to fit your machine requirements. The motor comes in a standard 6-lead configuration and is available in a 4-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special screw modifications, cables and connectors are also available upon request.
Note: Minimum purchase requirement of 100 pieces may apply. Please contact us to place a one-time sample order, maximum 10 pieces.
- Competitively-Priced, High-Resolution Digital Captive Linear Actuators
- Linear Force up to 22.5 LBS (100N)
- Linear Step Resolution of .001" and .004"
- Unipolar and Bipolar Coil Constructions
- Fast, Powerful and Precise Positioning
- Precision Radial Ball Bearing Design
- Industry Standard Frame Size
- Customized Designs Available
- CE Certified and RoHS Compliant
.png)
.png)
.png)
Spec Sheet (PDF)
