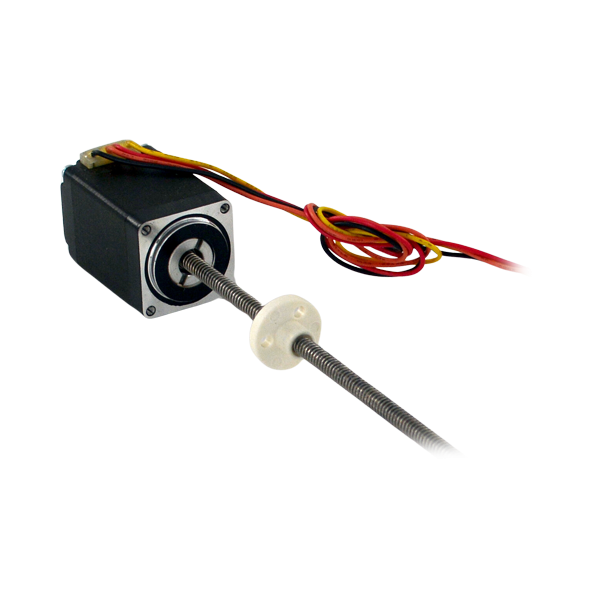

11AW2021X06-LW4-EL
| Type | External Linear |
|---|---|
| Bipolar RMS Current (A) | 1 |
| Bipolar RMS Voltage (V) | 4.7 |
| Travel Per Step (mm) | 0.0254 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.40 |
| Maximum Force (lbs) | 6.5 |
| Motor Length (mm) | 45.9 |
| Screw Length (in(mm)) | 6 (152.4) |
Interested in large quantity discount?
Product Information
The 11AW Linear Stepper Motors are designed to be the most versatile linear positioning motors on the market. Based on the NEMA 11 Hybrid Stepper Motor, it has a 1.8° single step. These hybrid non-captive and external linear actuators are robust and can be easily configured to solve some of the most difficult application problems. Integration of a lead screw with a motor saves space, eliminates components, and reduces cost. While many standard configurations are available, custom modifications for OEM customers are welcome.
11AW2021X02-LW4-C-01 Linear Stepper Motors are LTSOH (Limited to Stock on Hand).
- NEMA Size 11
- Motor Winding Options Available
- Custom Lead Screw Lengths
- Stepper Motor with Internal Nut
- Self Contained Package with Ball Bearings
- 1.8° Step Angle
- 0.00635mm or 0.0254mm Per Full Step
- CE Certified
.png)
.png)
.png)
.png)
