11AW2029X18-LW4-NC
| Type | Non-Captive |
|---|---|
| Bipolar RMS Current (A) | 0.7 |
| Bipolar RMS Voltage (V) | 4.7 |
| Travel Per Step (mm) | 0.00635 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.55 |
| Maximum Force (lbs) | 18 |
| Motor Length (mm) | 45.9 |
| Screw Length (in(mm)) | 18 (457.2) |
Interested in large quantity discount?
Product Information

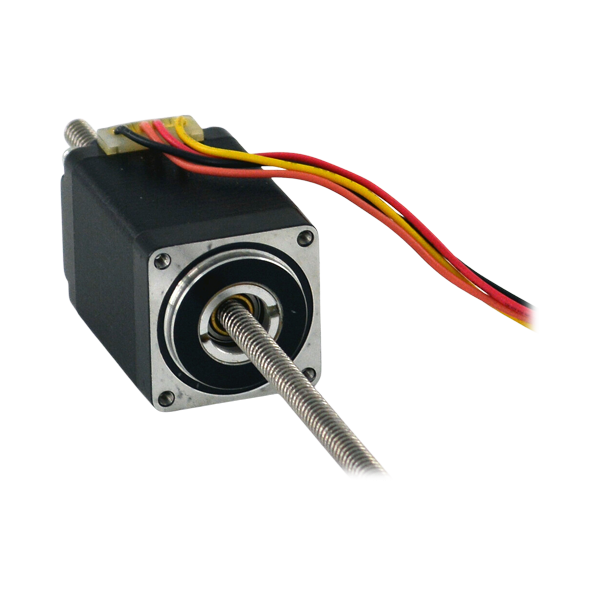

The 11AW Linear Stepper Motors are designed to be the most versatile linear positioning motors on the market. Based on the NEMA 11 Hybrid Stepper Motor, it has a 1.8° single step. In this hybrid Non-Captive model, when the motor is fixed and the lead screw is restricted from rotating, the lead screw will travel; by contrast, when the lead screw is fixed and the motor is restricted from rotating, the motor will travel. Integration of a lead screw with a motor saves space, eliminates components, and reduces cost. While many standard configurations are available, custom modifications for OEM customers are welcome.
- NEMA Size 11
- Motor Winding Options Available
- Custom Lead Screw Lengths
- Stepper Motor with Internal Nut
- Self Contained Package with Ball Bearings
- 1.8° Step Angle
- 0.00635mm Travel Per Full Step
- CE Certified
.png)
.png)
.png)
