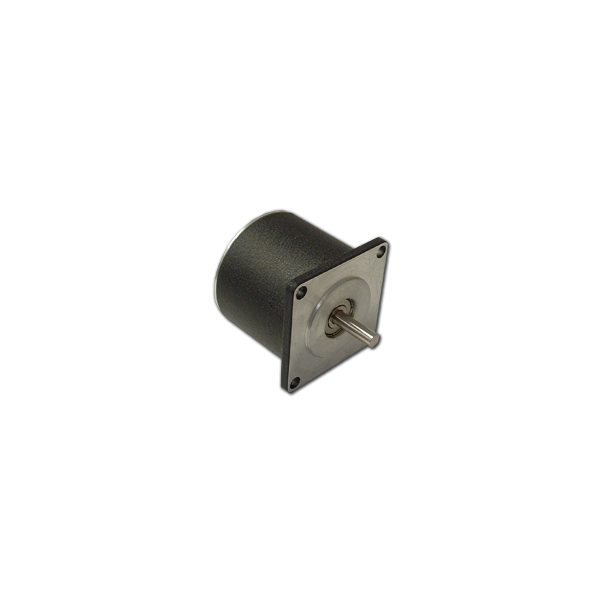

23D309D-LW8
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 210 |
| Bipolar RMS Current (A) | 3.3 |
| Bipolar RMS Voltage (V) | 3.17 |
| Bipolar Series Inductance Per Phase (mH) | 4.8 |
| Rotor Inertia (oz-in-sec2) | 0.0045 |
| # of Lead Wires | 8 |
| Shaft | Double |
| Weight (lbs) | 2.75 |
| Length (in) | 4 |
| Lead Time | Typ 35 Days |
Interested in large quantity discount?
Product Information
Anaheim Automation's 23D Series Standard Stepper Motors are NEMA 23 frame, 4-phase hybrid, 1.8° motors. They are available in three stack lengths, with torque ratings from 53 to 210 ounce inches and current ratings ranging from 1.0 amps/phase to 3.2 amps/phase. These motors offer 200 steps/revolution (full-step) and are ideal for half-step and microstep operation. The standard 23 frame motors are available in 6 and 8 flying lead configurations. Options for the 23 frame motors are double-ended shafts and encoder provisions. Most commonly stocked are the 6 lead motors. This series is a good cross to the Superior Electric Slosyn series M061, M062 and M063.
- NEMA 23 Frame Size
- 1.8° Step Angle
- 5% of One-Step Accuracy, Noncumulative
- -20°C to 50°C Ambient Temperature
- 100°C Maximum Case Temperature
- NEMA Class B Insulation
- 1000M Ohms at 500VDC @25°C Insulation Resistance
