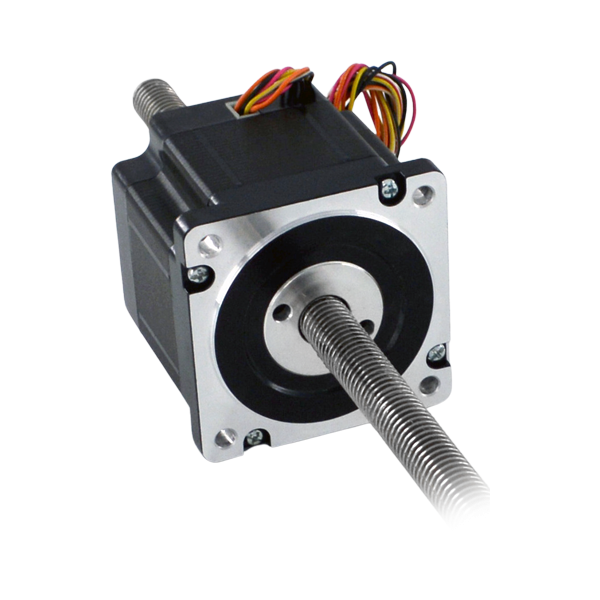

NEMA 34 stepper motor linear actuator

34AW1063X18-LW8-EL

BDPG-45-68-24V-3000-R3.7

BDPG-45-68-24V-3000-R3.7

34AW1063X18-LW8-NC

Unit Price:
$447.00
Quantity Discount
  • Buy 10 for $374.13 each and save 16%
  • Buy 25 for $321.65 each and save 28%
  • Buy 50 for $317.24 each and save 29%
  • Buy 100 for $296.41 each and save 34%
Inventory:
3
In stock
More Information
Type Non-Captive
Bipolar RMS Current (A) 3
Bipolar RMS Voltage (V) 4.5
Travel Per Step (mm) 0.0127
# of Lead Wires 8
Weight (lbs) 5.90
Maximum Force (lbs) 528
Motor Length (mm) 78.56
Screw Length (in(mm)) 18 (457.2)
Interested in large quantity discount?

Product Information

The 34AW Linear Stepper Motors are designed to be the most versatile linear positioning motors on the market. Based on the NEMA 34 Hybrid Stepper Motor, it has a 1.8° single step. These hybrid non-captive and external linear actuators are robust and can be easily configured to solve some of the most difficult application problems. Integration of a lead screw with a motor saves space, eliminates components, and reduces cost. While many standard configurations are available, custom modifications for OEM customers are welcome.

  • NEMA Size 34
  • Motor Winding Options Available
  • Custom Lead Screw Lengths
  • Stepper Motor with Internal Nut
  • Self Contained Package with Ball Bearings
  • 1.8° Step Angle
  • 0.0127mm Per Full Step
  • CE Certified

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Certificate
