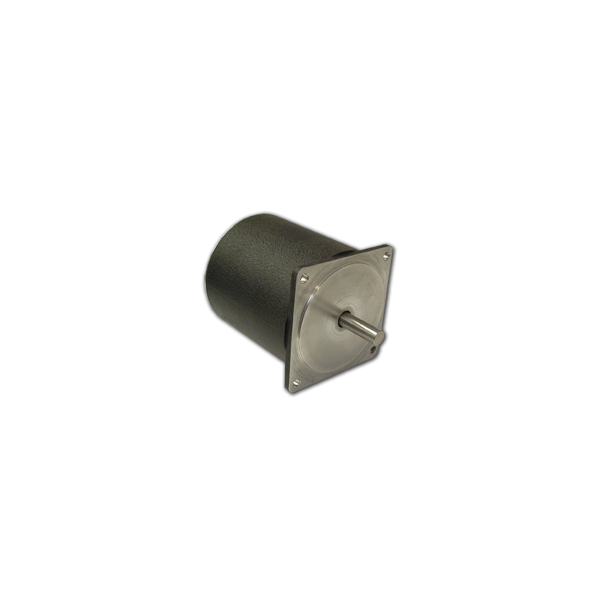

34D213S-LW8
| NEMA Size | 34 |
|---|---|
| Bipolar Torque (oz-in) | 420 |
| Bipolar RMS Current (A) | 4.6 |
| Bipolar RMS Voltage (V) | 2.94 |
| Bipolar Series Inductance Per Phase (mH) | 5 |
| Rotor Inertia (oz-in-sec2) | 0.0195 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 5.5 |
| Length (in) | 3.7 |
Interested in large quantity discount?
Product Information
Anaheim Automation's 34D Series Standard (Round-Bodied) Stepper Motors are NEMA 34 frame, 4-phase hybrid, 1.8° motors. They are available in three stack lengths, with torque ratings from 150 to 630 ounce inches. They have lower rotor inertia than square high torque motors which allow them to accelerate faster and offer higher torque at speeds greater than 25 revolutions per second. These motors are an excellent choice to replace many of the round stepper motors that were popular for many years. The motor comes in a standard 6-lead configuration with a broad line of motor windings and stack lengths available off-the-shelf. Anaheim Automation can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, lead wire configuration, conduit box, cables and connectors are also available upon request. These "legacy" motors are a good cross to Superior Electric Slosyn series M091, M092 and M093.
- NEMA 34 Frame Size
- 1.8° Step Angle
- Torque - Up to 630 oz-in
- Best Selection for High Speed Applications
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- Lead Configuration
- Conduit Box
.png)
_6_and_8_lead.png)
.png)
Stepper Motors - 34D109D Torque Curve
.png)
Stepper Motors - 34D209 Torque Curve
.png)
Stepper Motors - 34D314 Torque Curve
.png)
.png)
Spec Sheet (PDF)
