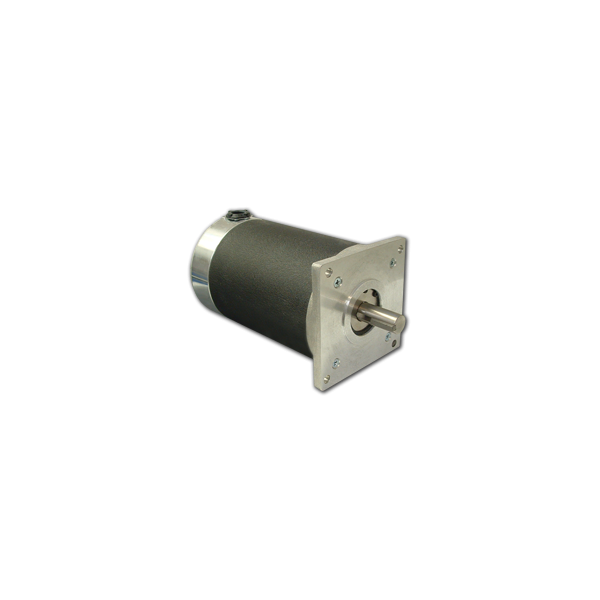

42D119D
| NEMA Size | 42 |
|---|---|
| Bipolar Torque (oz-in) | 875 |
| Bipolar RMS Current (A) | 6.7 |
| Bipolar RMS Voltage (V) | 2.14 |
| Bipolar Series Inductance Per Phase (mH) | 3.52 |
| Rotor Inertia (oz-in-sec2) | 0.0546 |
| # of Lead Wires | 6 |
| Shaft | Double |
| Weight (lbs) | 9 |
| Length (in) | 4.74 |
Interested in large quantity discount?
Product Information
Anaheim Automation's 42D Series Standard Stepper Motors are NEMA 42 frame, 4-phase hybrid, 1.8° motors. They are available in two stack lengths, with torque ratings from 625 to 1,575 ounce inches, and current ratings ranging from 6 amps/phase to 12.7 amps/phase. These motors offer 200 steps/revolution (Full-step) and are ideal for Half-step and Microstep operation. The standard 42 frame motor is configured with a conduit box. Often referred to as "legacy" motors, the 42D series is a good cross to the Superior Electric Slosyn M111 and M112 series. Options include six or eight-lead wire configurations, single or double-ended shaft.
- NEMA 42 Frame Size
- 1.8° Step Angle
- Torque up to 1,575 oz-in
- 5% of One Step Accuracy, Non-Cumulative
- -20°C to 50°C Ambient Temperature
- 100°C Maximum Case Temperature
- NEMA Class B Insulation
- 1000M Ohms at 500VDC @25°C Insulation Resistance
.png)
.png)
.png)
Stepper Motors - 42D212-2 Torque Curve
.png)
Stepper Motors - 42D212 Torque Curve
.png)
.png)
Spec Sheet (PDF)
