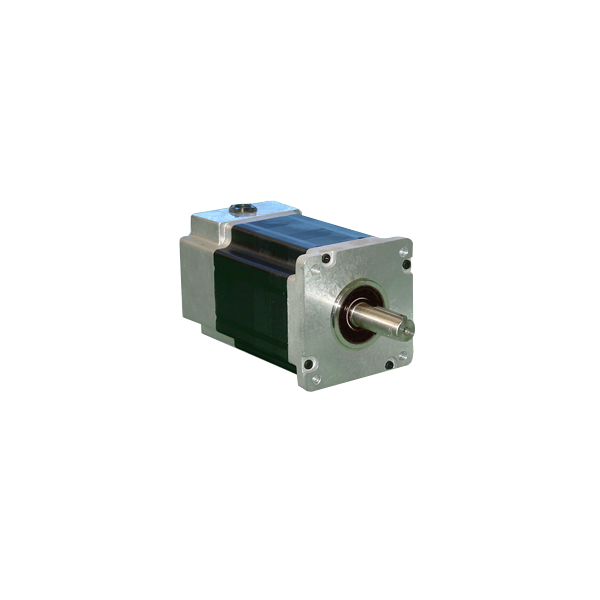

42N112S-CB8
| NEMA Size | 42 |
|---|---|
| Bipolar Torque (oz-in) | 1625 |
| Bipolar Series RMS Current (A) | 4.4 |
| Bipolar Series RMS Voltage (V) | 4.09 |
| Bipolar Series Inductance Per Phase (mH) | 15.8 |
| Bipolar Series Resistance Per Phase (ohm) | 0.93 |
| Rotor Inertia (oz-in-sec2) | 0.0783 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 11.4 |
| Length (in) | 3.9 |
Interested in large quantity discount?
Product Information
The powerful 42N High-Torque Stepper Motor series is offered in four stack versions, with peak torque from 1,650 to 4,365 ounce inches. These motors are 1.8° with eight lead wires as standard, but are available in other wire configurations, conduit boxes, IP ratings, as well as single and double-ended shaft models. Compatible with the Pacific Scientific N42 series.
Note: 42N112S-CB8 is LTSOH (limited to stock on hand).
- NEMA 42 Frame Size
- 1.8° Natural Step Angle
- Holding Torque Ratings Up to 4365 oz.in.
- Substantial Increase In Torque Over Standard Motors
- High Acceleration and Increased Rotor Inertia
- 3 Stack Lengths
- 3.0% Typical Step Accuracy - Noncumulative
- Rugged Construction
- Higher Temperature Characteristics
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
.png)
