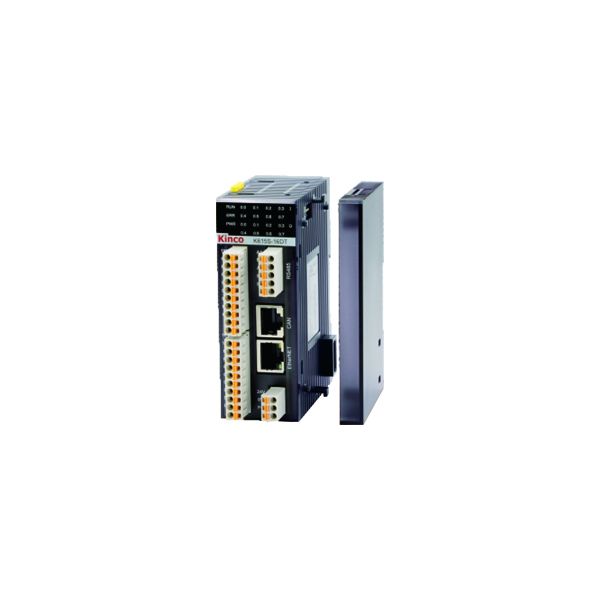

KNC-PLC-K615S-16DT
| Module Type | CPU |
|---|---|
| Input Points | 8 |
| Input Type | Sinking or Sourcing |
| Output Points | 8 |
| Output Type | Transistor |
| COM Ports | 2xRS485, 1xEthernet, 1xCAN |
Interested in large quantity discount?
Product Information
The KNC-PLC-K615S CPUs are offered with 8 Source/Sink inputs and 8 Transistor outputs. The optional expansion modules are attached to the KNC-PLC-K615S CPU to expand beyond the onboard outputs. The KNC-PLC-K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules. If a user were to select the KNC-PLC-K615S along with 16 PLC KNC-PLC-K622S-16DT units, the user would achieve the maximum 272 I/O points within the constraint of 16 expansion modules. The KNCPLC- K615S modules come with transistor outputs with a sourcing configuration and source/sink inputs that can handle voltages up to 30 VDC. The transistor output modules are opto-isolated for unit protection.
- Digital Inputs: 8 Channels, Source/Sink (PNP/NPN)
- Digital Outputs: 8 Channels, Transistor (PNP)
- Supports 3 Channels of High-Speed Input at 200KHz, 1 Channel at Single-Phase 20KHz/Double-Phase 10KHz
- Supports 3 Channels of High-Speed Output at 200KHz, 1 Channel at Maximum 10KHz
- Communication Interfaces: Ethernet (1), RS485 (2), CAN (1)
- Support Connecting Up to 16 K6S-Series Expansion Modules
- Power Supply: 24VDC
