KNC-SRV-SMH80S-0075-30ABK-3AKH
| Rated Torque (oz-in) | 338 |
|---|---|
| Rated Power (Watts) | 750 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 5000 |
| Rated Current (Arms) | 7.5 |
| Voltage | 120 VAC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.01961 |
| Torque Constant KT (oz-in/A) | 46.87 |
| Resistance (ohms) | 0.41 |
| Inductance (mH) | 1.95 |
| Length (mm) | 197 |
| Weight (lbs) | 8.81 |
Interested in large quantity discount?
Product Information

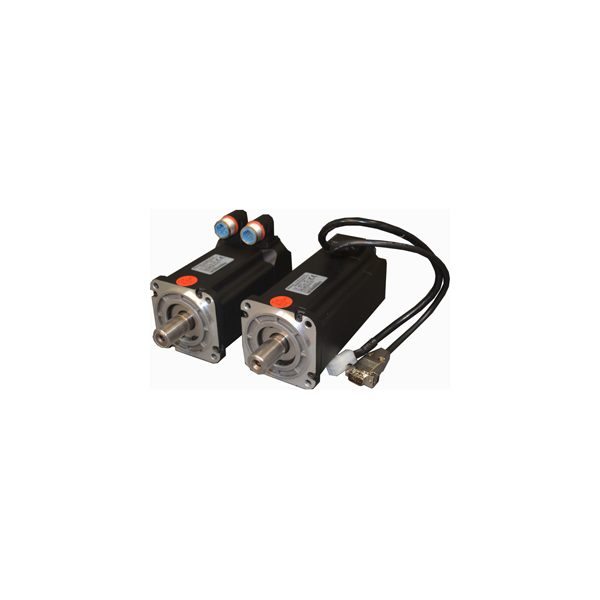

The KNC-SRV-SMH80S-0075-30ABK-3AKH Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 80mm flange size motors boast peak torque values up to 1,014 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake as well as a 2,500 PPR Incremental Encoder for motor feedback.
- 220VAC Servo Motor with Brake
- 750W Power Rating
- Rated Torque of 338 oz-in
- Maximum Speed of 5500 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
