KNC-SRV-SMC80S-0100-30ABK-5DSH

KNC-SRV-SMC80S-0100-30ABK-5DSH

KNC-SRV-SMH80S-0075-30ABK-3AKH

KNC-SRV-SMH80S-0075-30ABK-3AKH

KNC-SRV-SMH80S-0075-30AAK-3AKH

1pc Price:
$377.00
Quantity Discount
  • Buy 10 for $364.05 each and save 3%
  • Buy 25 for $361.19 each and save 4%
  • Buy 50 for $307.28 each and save 18%
  • Buy 100 for $289.39 each and save 23%
Inventory:
1
More Information
Rated Torque (oz-in) 338
Rated Power (Watts) 750
Rated Speed (RPM) 3000
Max Speed (rpm) 6000
Rated Current (Arms) 7.5
Voltage 120 VAC
Brake No
Inertia (oz-in-sec2) 0.02002
Torque Constant KT (oz-in/A) 46.87
Resistance (ohms) 0.41
Inductance (mH) 1.95
Length (mm) 147
Weight (lbs) 7.27
Interested in large quantity discount?

Product Information

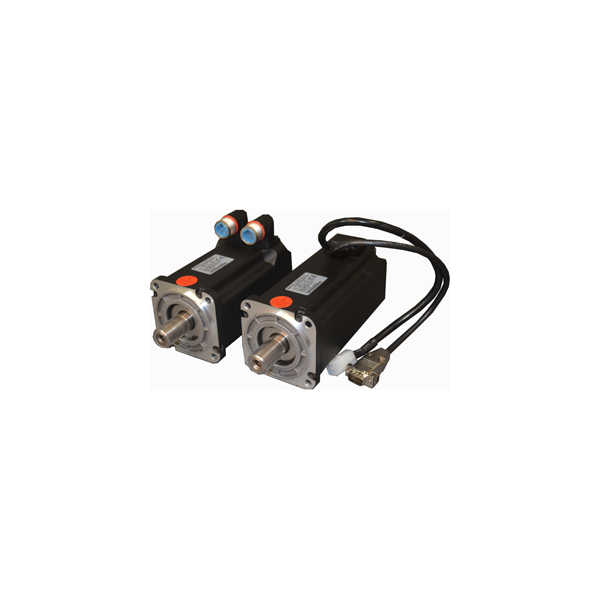

The SMH80S Series AC Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 1014 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder. It is available in an 80mm square flange size, with a brake option.

  • 220 VAC
  • 750 W Power Rating
  • Rated Torque of 338 oz-in
  • Maximum Speed of 5500 RPM
  • 2500 PPR Incremental Encoder Attached
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Avalable
  • CE Certified

Spec Sheet (PDF)

Technical Specifications
