KNC-SRV-FD332S-LA-000
| Rated Power (Watts) | 750-1000 |
|---|---|
| Rated Voltage | 88-126 VAC |
| Drive Control Capabilities | Position, Speed, Torque |
| COMM | MODBUS through RS485 |
| I/O Signals | 7 Inputs, 5 Outputs |
Interested in large quantity discount?
Product Information

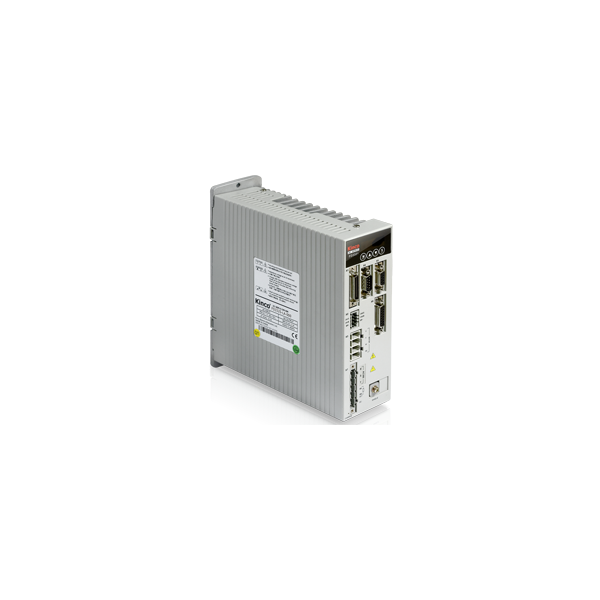

The FD332S-LA-000 EtherCAT Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 750-1000 Watts. Also, it is designed to switch dynamically among different control methods for a more flexible operation. The FD332S-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The FD332S-LA-000 Servo Drive operates with single-phase 88-126VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MODBUS Protocols or the Free, Easy-to-Use Software. Please consult our Application Engineer for more information.
- 88-126VAC Single Phase Input
- 750-1000 Watt Power Range
- Position, Speed, and Torque Control
- Communication Ports: RS232 and RS485
- 2500 PPR Incremental Encoder
- Communication Software
- Configure Parameters
- I/O Signal Monitoring
- Speed and Position Curves
- Programmable Inputs and Outputs
- 7 Inputs
- 4 Outputs
- 2 Analog Inputs
- CE Certified
