EML-40APA22

1pc Price:
$2,225.00
Quantity Discount
  • Buy 10 for $1,962.82 each and save 12%
  • Buy 25 for $1,905.09 each and save 14%
  • Buy 50 for $1,850.66 each and save 17%
  • Buy 100 for $1,799.25 each and save 19%
Inventory:
1
More Information
Rated Torque (oz-in) 5438
Rated Power (Watts) 4000
Rated Speed (RPM) 1000
Max Speed (rpm) 1500
Rated Current (Arms) 24
Voltage 220 VAC
Brake No
Inertia (oz-in-sec2) 1.4473
Torque Constant KT (oz-in/A) 264.5
Resistance (ohms) 0.2
Inductance (mH) 2.1
Length (mm) 333
Weight (lbs) 103.62
Interested in large quantity discount?

Product Information

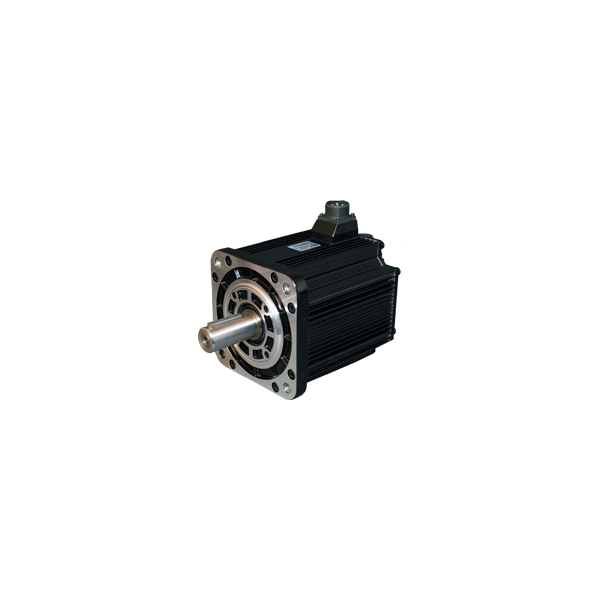

The EML-40APA22 Servo Motor is a low-cost solution for industrial motion control. These rugged 180mm frame motors feature a sleek self-cooled enclosure and a medium-inertia design to maximize torque at high speeds for a power rating of 4,000 Watts. Additionally, the EML-40APA22 boasts peak torque of up to 16,229 oz-in, a max speed of 1,500 RPM, and comes equipped with a 2,500 PPR incremental encoder for motor feedback.

***Note: The EML-20APA22 motors are "LTSOH" (Limited to Stock on Hand) and will no longer be available after the current stock has been depleted. If you require assistance with selecting an alternate motor, please contact our applications engineers here.***

  • 220VAC Medium-Inertia Servo Motor
  • Peak Torque up to 300% of Rated Torque
  • Peak Current up to 300% of Rated Current
  • Maximum Speed of up to 1,500 RPM
  • 2,500PPR Incremental Encoder
  • Self-Cooled Enclosure
  • Power Rating of 4.0 kW
  • Oil Seal
  • Neodymium-Iron-Boron Magnets (NdFeB)
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
